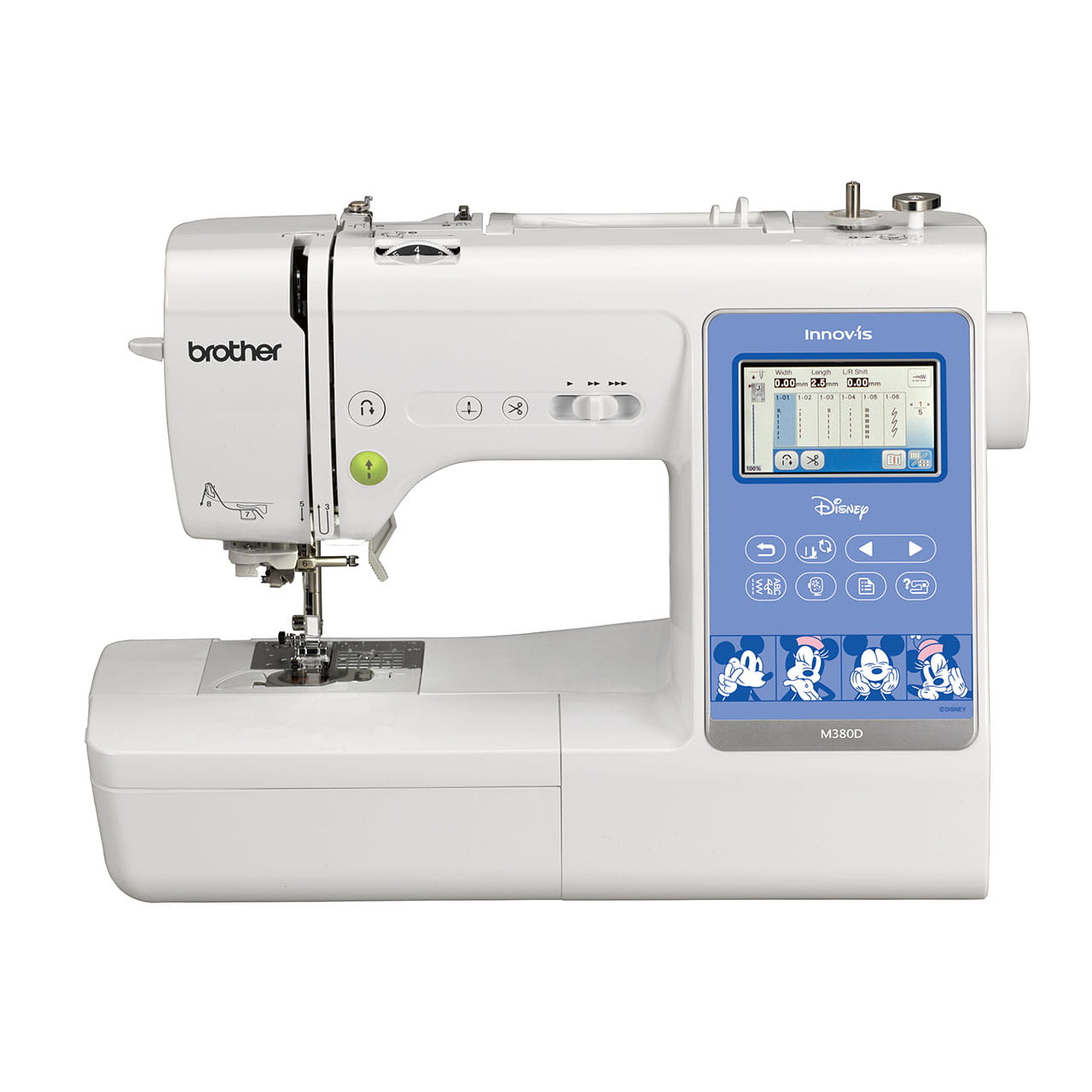

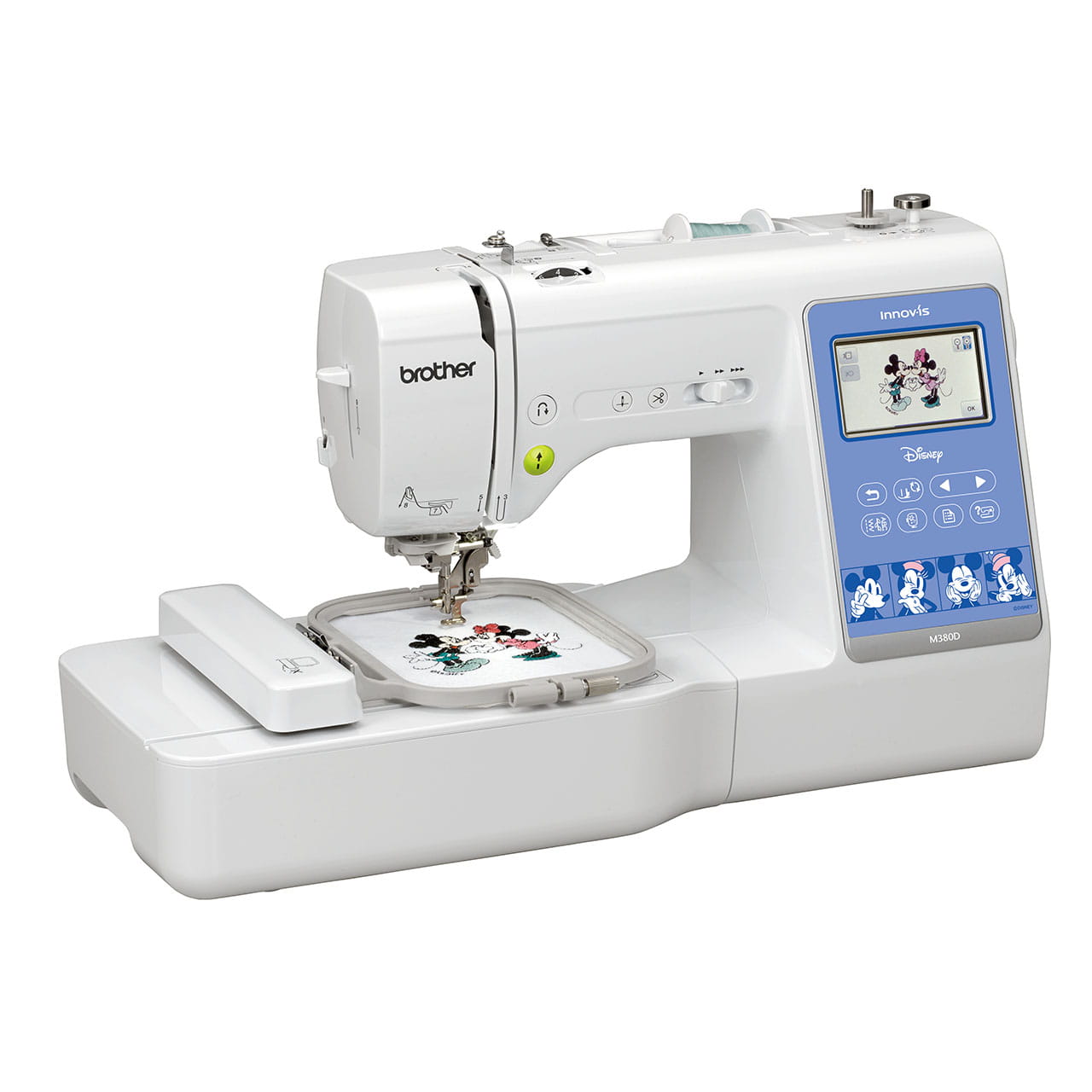

Discover the creativity of sewing and embroidery in a powerful machine with Disney embroidery designs
MYR 4,599
- Advanced Needle Threading System
- 200 Built-in Embroidery Patterns
- Online how-to videos
- Easily combine designs and edit on-screen
- 65 exclusive designs featuring Disney characters
- Easily import designs via WLAN or USB
Information
Overview
Specifications
Basic Specs
Bobbin Type
Horizontal
Needle Threader
Advance
Thread Cutter
Yes
Sewing Light
LED
Foot controller
Yes
Start Stop Button
Yes
Thread Tension Control
Auto
Quick-set Bobbin
Yes(Easy)
F.A.S.T Bobbin Winding System
Yes
Touch Panel LCD
Yes
LCD Display Screen
Yes
Case
Hard cover
Wide Table
Optional
Sewing Features Spec
Stitch No
181
Sewing Speed
850 spm
Stitch pattern selection
Colour LCD touchscreen
Maximum Stitch Width
7 mm
Stitch Width Control
Yes
Stitch length control
Yes
Buttonhole Sewing
Auto
Number of Buttonholes
10
Lettering
4 (3 Alphabet, 1 Japanese)
Drop Feed
Manual
Knee Lifter
No
My Custom StitchTM - Create Your Own Sewing Stitch
Yes
Side feeding
No
Feed Dog
7, longer ver.
Embroidery Features Spec
Embroidery Speed (Max)
400
Embroidery Area Max
100 mm x 100 mm
Built In Embroidery Patterns
200 (Disney: 65)
Build In Embroidery Font
11 (8 alhpabet + 3 Japanese)
On Screen Editing
Yes
USB
Yes
Jump Stitch & Wiper Function
No
Camera Function
No
Needle number for Embroidery
1
