High-yield printing, fast speeds, and user-friendly interface monochrome laser printers
MYR 2,299
- A4 print speed up to 48 ppm (Black)
- AirPrint, Mopria, LAN, USB 2.0
- Auto 2-sided (Duplex) printing, 50 sheets Auto-Document Feeder (ADF), 3.5” Colour LCD touchscreen
- Full capacity toner included. Yield up to 3000 pages (black)*
- Compatible with Mobile Connect App
- 3 years on-site warranty included
Information
Overview

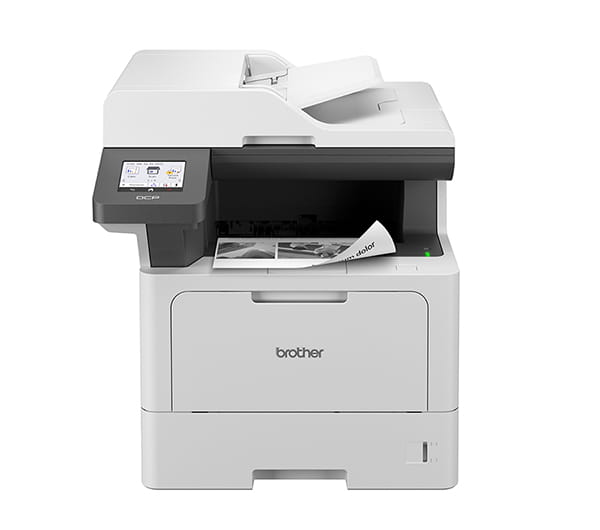

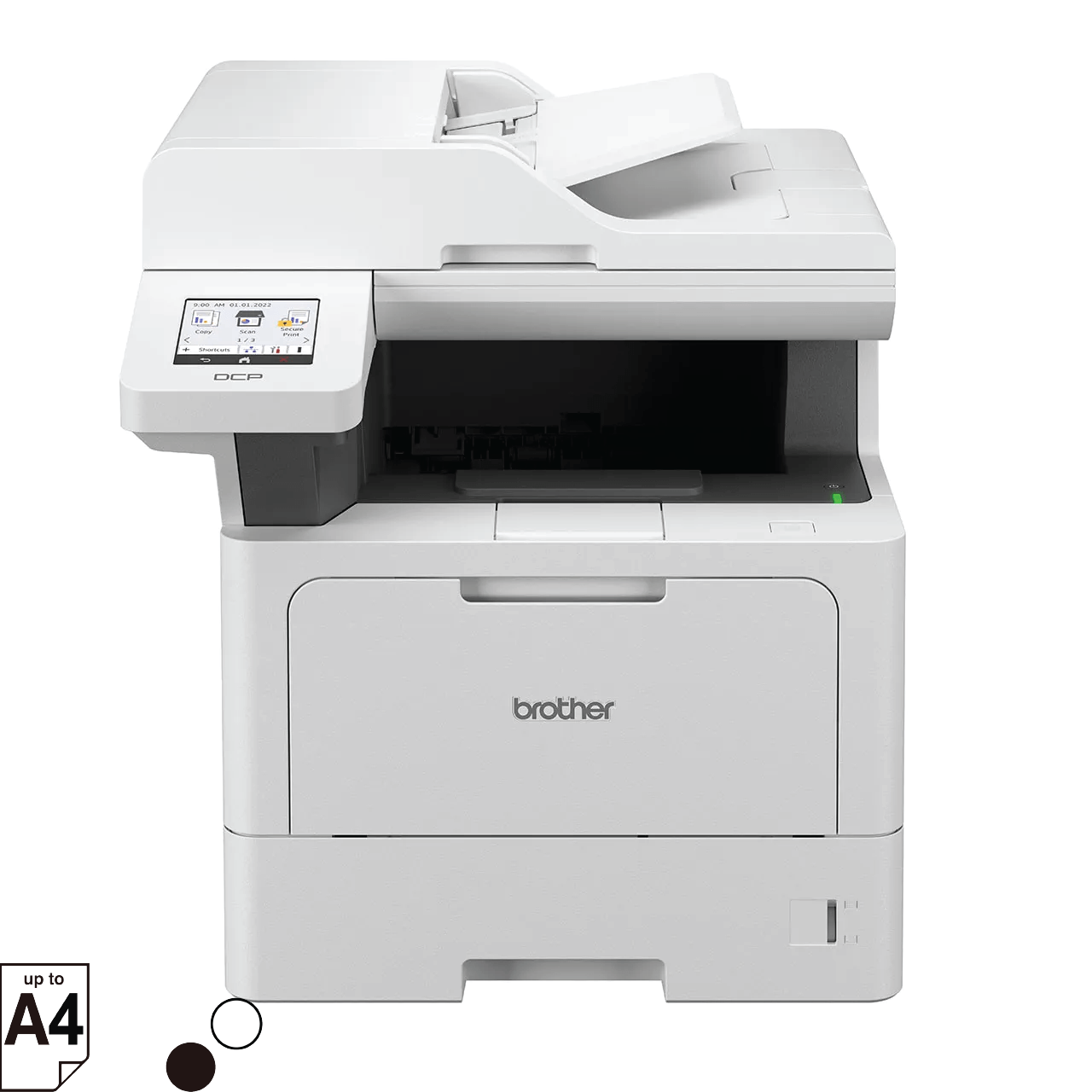

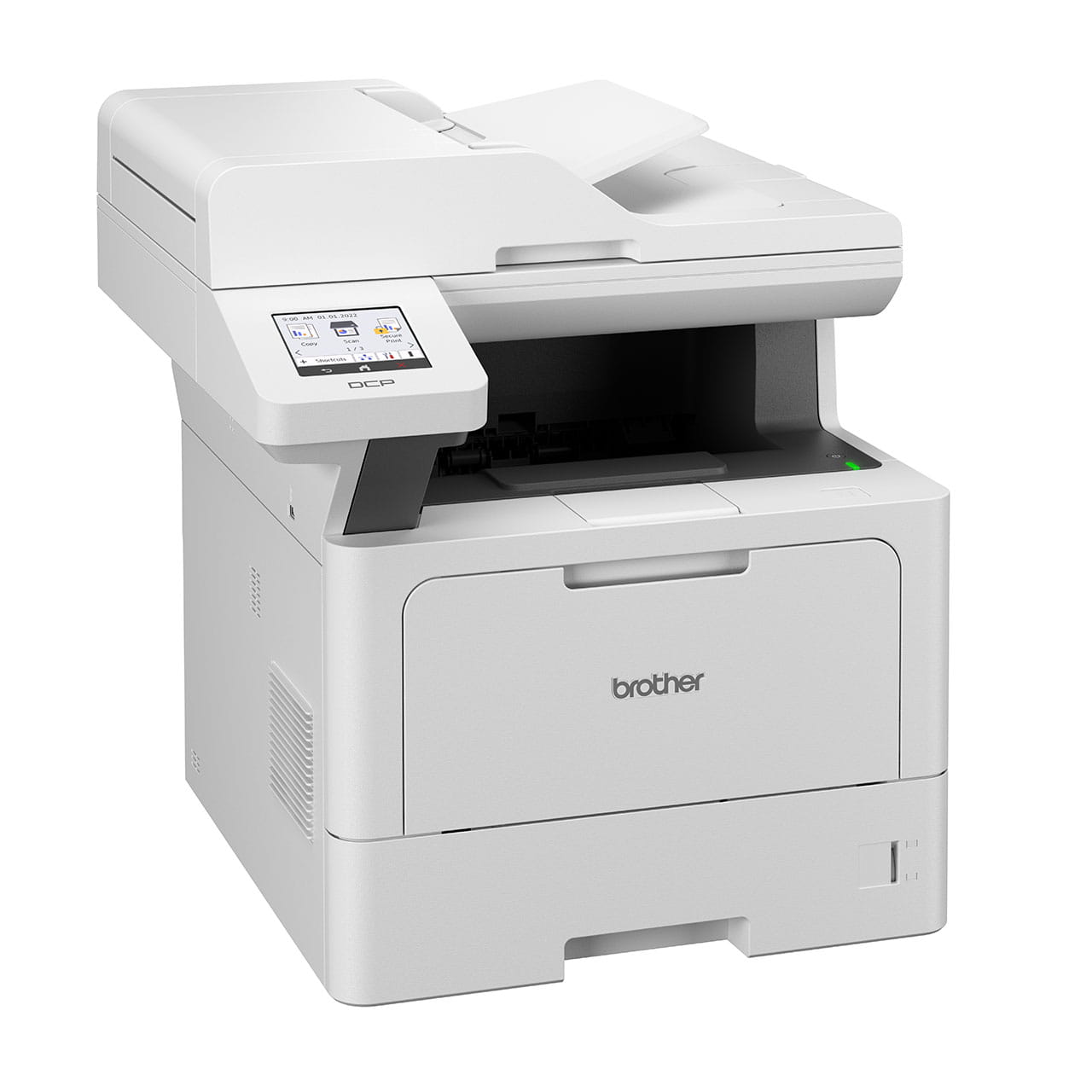

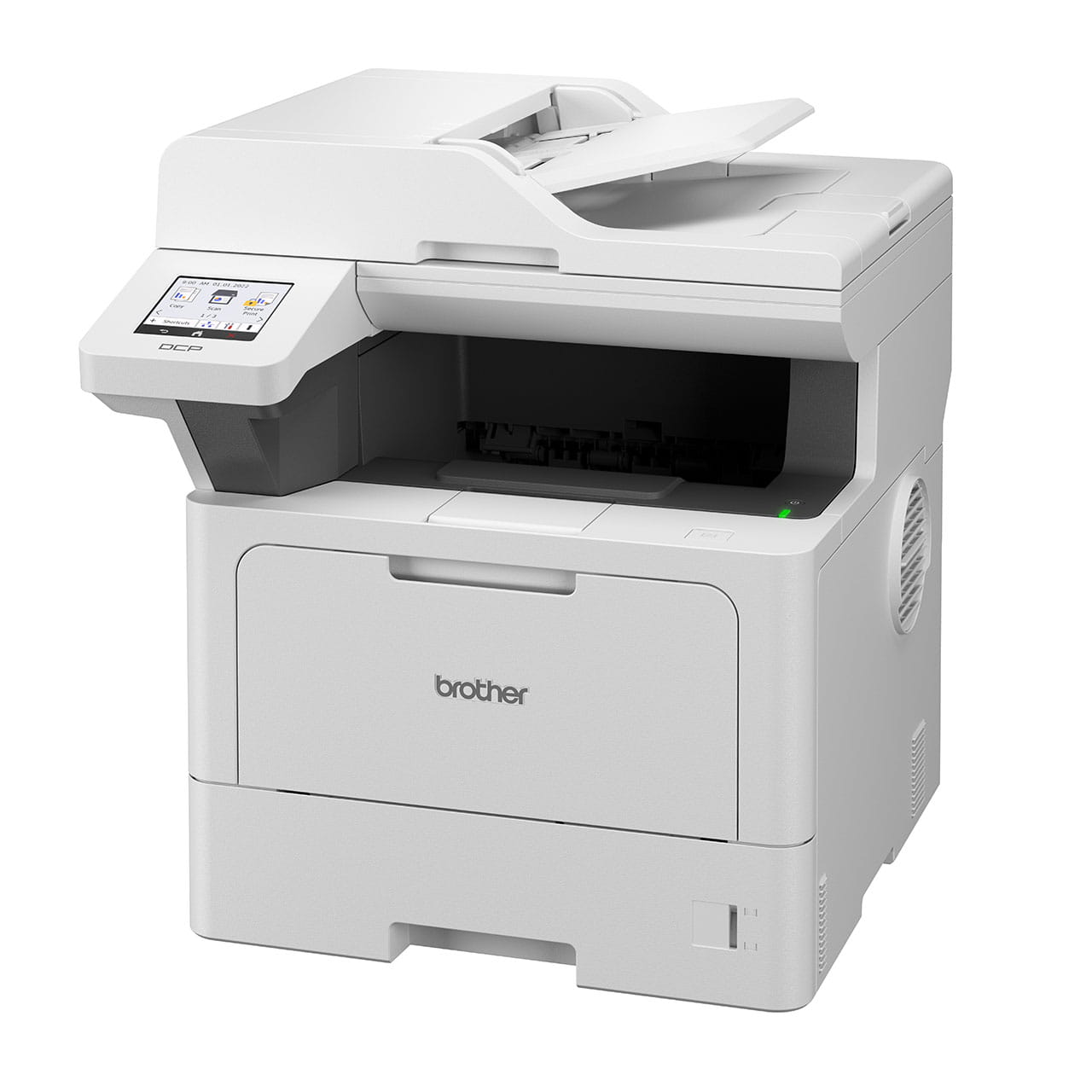

Experience increased business efficiency with Brother’s DCP-L5510DN 3-in-1 monochrome laser multi-function centre printer.
| Fast Print Speeds | Auto duplex print and scan | High Print Volume |
|---|---|---|
| Tackle your print jobs easily with a print speed of up to 48 ppm (A4/Letter) and an impressive First Print out Time of under 6.7 seconds. | Frees up your time for other tasks, enhancing overall productivity and consequently reducing total operational expenses. | Optimize print efficiency with high paper input capacities of up to 1040 sheets and save time on reloading. |
| High-Yield Toner Cartridges | Auto Document Feeder | 3.5” LCD TOUCHSCREEN |
| Reduce your overall printing cost and maintenance downtime with each toner cartridge supports more than 18000 pages* *In accordance with ISO/IEC 19752 |
Enhance print productivity with the Auto Document Feeder that supports up to 50 sheets (A4/LTR) for print, copy and scan jobs in batches. | Displays information with clarity using a seamless interface that allows for intuitive navigation. |
Protect What Matters to Your Business
Oversee and control your print infrastructure remotely with our BRAdmin Professional Software - from managing printing costs with print quotas for each user to instant notifications of any printer downtime for speedy attendance.
Protect your data effectively with many security features
Features like Secure Function Lock and Secure Print secure print tasks and functions against unauthorized user access.
Specifications
Basic Specs
Functions
Print, Scan, Copy
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
417 mm × 461 mm × 448 mm
Weight
14.9 kg
Print Speed
Up to 48 (A4) / Up to 50 (Letter) ppm
Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick
Paper Size
A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch
Maximum Paper Capacity
Up to 1,390 sheets of 80 gsm plain paper (with Added Optional Trays)
Resolution
Up to 1200 x 1200 dpi
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
A4, Letter, Legal, Mexico Legal, India Legal, Folio
(Paper sizes other than A4 are supported only in some countries.)
Paper handling
Tray #1 - Maximum Paper Weight
60 to 163 gsm (16 to 43 lb)
Tray #1 - Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Tray #1 - Paper Size
A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, Folio, 16K (195x270 mm), A4 Short (270mm Paper)
Tray #2 - Maximum Paper Weight
60 to 120 gsm (16 to 32 lb)
Tray #2 - Maximum Paper Capacity
LT-5505: Up to 250 sheets of 80 gsm plain paper
LT-6505: Up to 520 sheets of 80 gsm plain paper
Multi-purpose Tray - Maximum Paper Weight
60 to 230 gsm (16 to 60 lb)
Multi-purpose Tray - Paper Size
Width: 69.8 to 215.9 mm (2.75" to 8.5")
Length: 127 to 355.6 mm (5" to 14")
Envelope: COM-10, DL, C5, Monarch
Multi-purpose Tray - Maximum Paper Capacity
Up to 100 sheets of 80 gsm plain paper
Automatic Document Feeder (ADF) Maximum Paper Capacity
Up to 50 sheets of 80 gsm plain paper
Paper Output
Up to 150 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray)
1 sheet (face up delivery to the face up output tray)
Copy
Colour / Monochrome
N/A
Yes
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Up to 1200 x 600 dpi
Scan
Colour / Monochrome
Yes / Yes
Resolution - Interpolated
Up to 19200 x 19200 dpi (interpolated) (Windows Only)
Resolution - Scanner Glass
Up to 1200 x 1200 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 600 x 600 dpi
Document Scanning Width / Length - Scanner Glass
Width: Up to 216 mm
Length: Up to 300 mm
Document Scanning Width / Length - Automatic Document Feeder (ADF)
Width: 105 to 215.9 mm
Length: 147.3 to 355.6 mm
1-Sided (Simplex) - Scan Speed
Up to 28 (Mono) / Up to 20 (Colour) ipm
Connectivity
Connectivity
Hi-SpeedUSB2.0, IEEE 802.11a/b/g/n (Infrastructure Mode), 10Base-T/100Base-TX/1000Base-T
Display & Memory
Display Type
3.5" Colour Touchscreen LCD
Memory Capacity
2 GB (For India)
1 GB (For other countries)
Operation
Power Source
220 - 240 V AC 50/60 Hz
Power Consumption - Printing
Approximately 670 W
Power Consumption - Ready
Approximately 31 W
Power Consumption - Sleep
Approximately 5.9 W
Power Consumption - Power Off
Approximately 0.05 W
Noise Level
54.0 dB (A)
Supported Operating Systems
Supported OS
Windows 10
Server 2012 / 2012 R2 / 2016 / 2019
