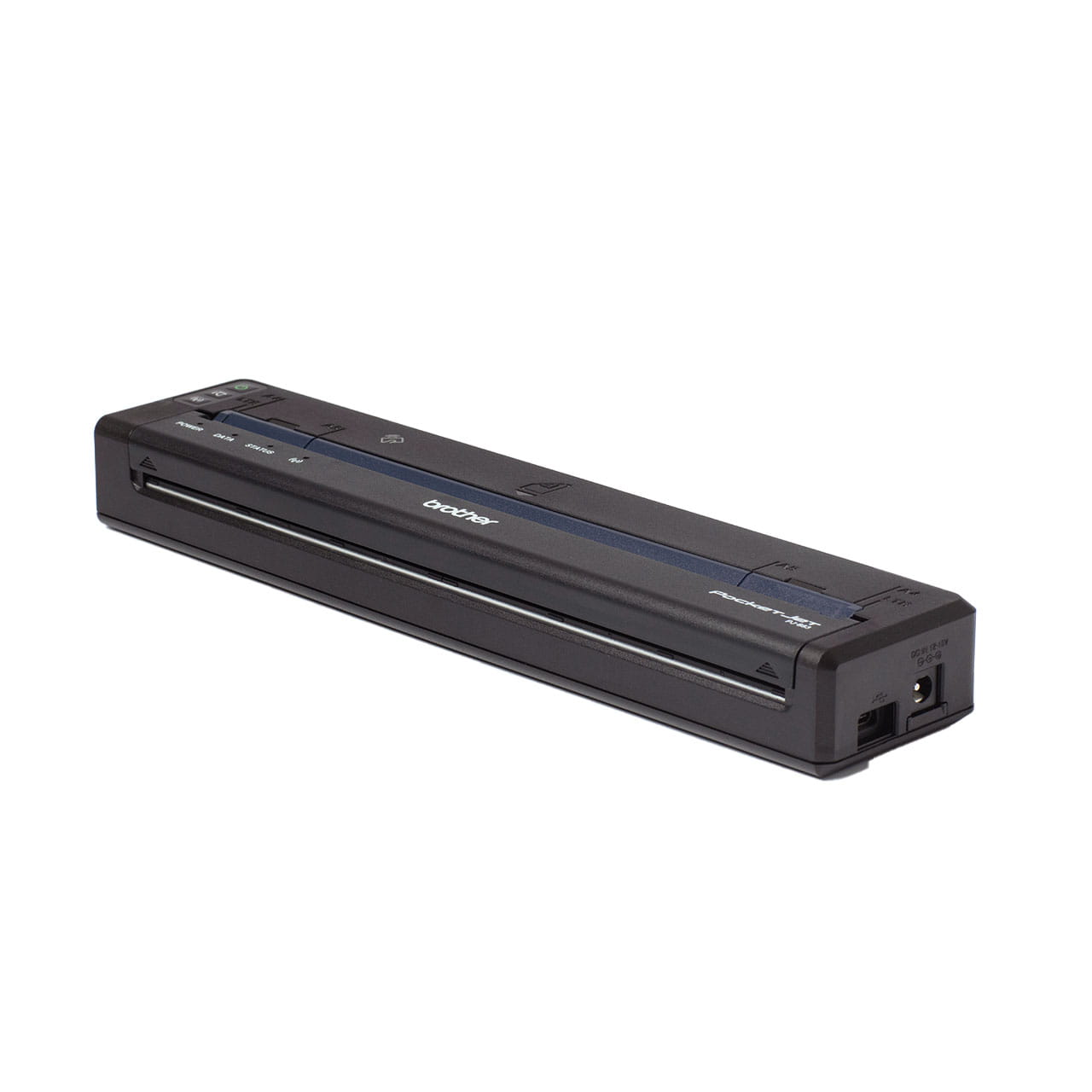

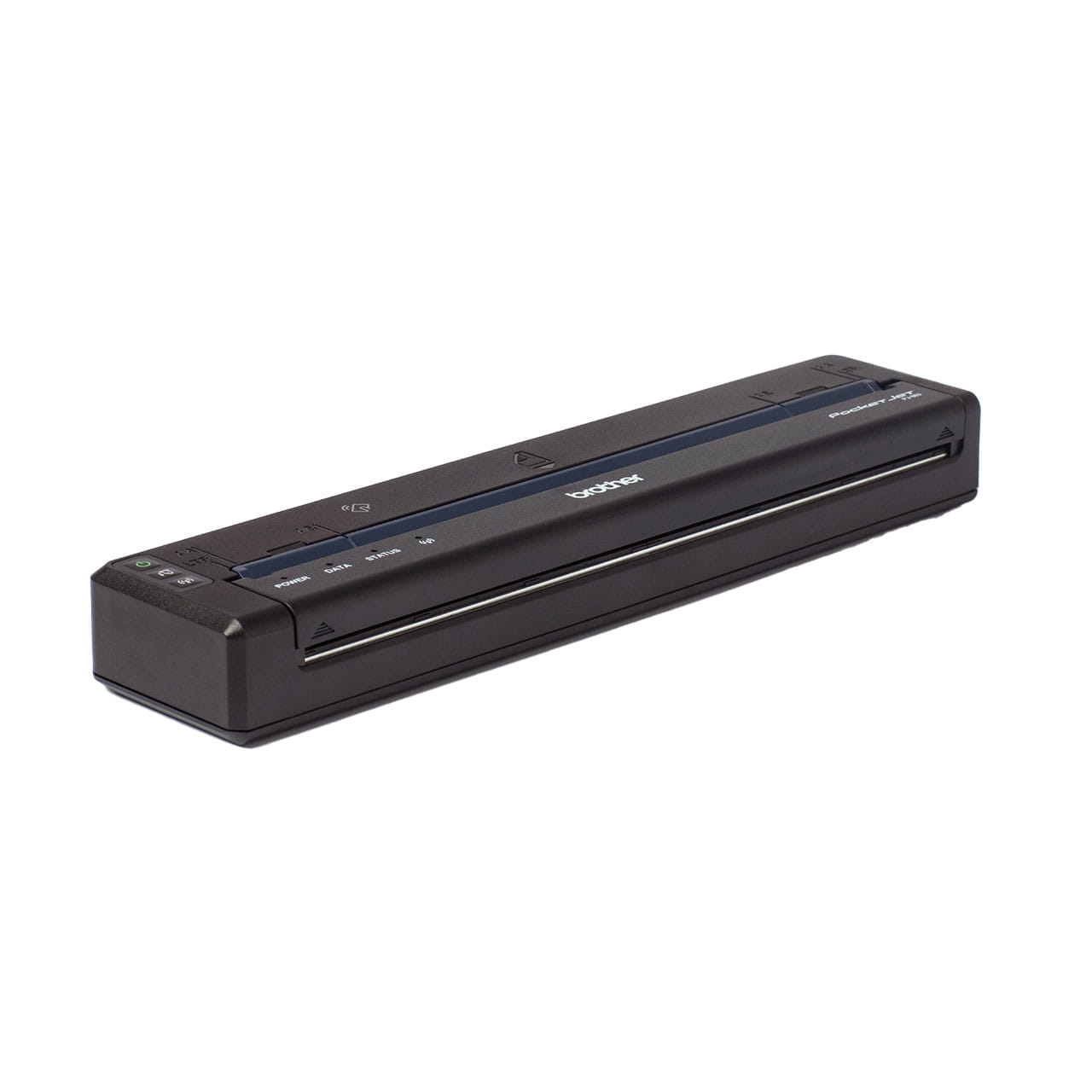

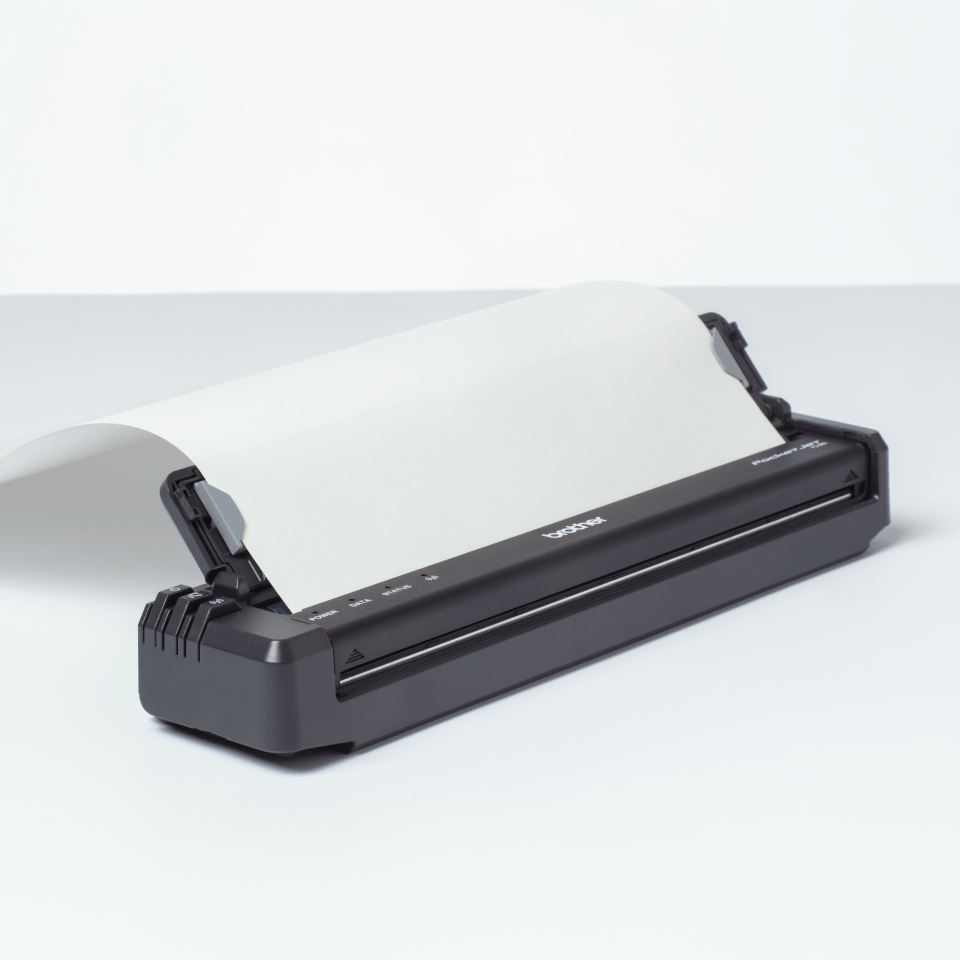

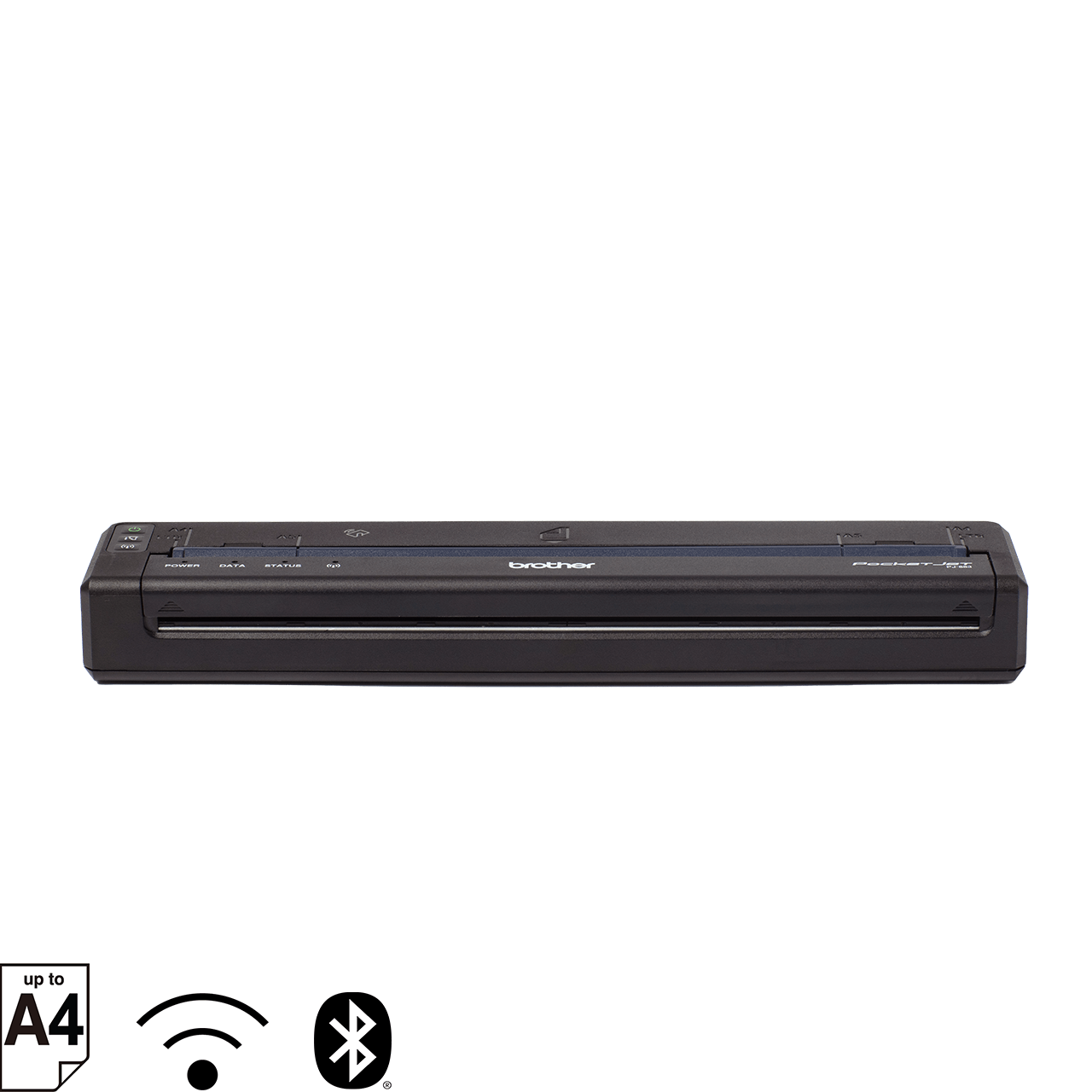

A4 Mobile Thermal Printer with MFi Bluetooth and Wi-Fi Connectivity
MYR 2,599
- Compact, lightweight and portable
- Prints up to A4 size
- 13.5ppm print speed*
- 300dpi print resolution
- MFi Bluetooth, NFC, USB and Wi-Fi connectivity
- Reliable, direct thermal printing technology and with no ink or toners required
Information
Overview
Specifications
Basic Specs
Functions
Printer Type
Portable printer
Product Dimensions (Width X Depth X Height)
255 mm × 55 mm × 30 mm
Weight
480 g
Print Speed
Up to 13.5ppm, 3ips fast print speed
Paper Type
Paper and Synthetic
Full-page: Cut Sheet, Continuous Roll, Perforated Roll, Fan-Folded
Labels: Cut Sheet, Fan-Folded
Paper Size
A4, A5, Letter, Legal, and Continuous length
Maximum Paper Capacity
Cut paper and Roll paper: 215.9mm, 8.5 inches (Letter, Legal)
Resolution
300×300dpi
Printing Width
Up to 203.2mm
Barcode
Linear: Code39, Code93, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR(NW-7), CODE128, GS1-128(UCC/EAN-128), POSTNET, GS1 DataBar(RSS), MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5
2D: QR Code, Micro QR Code, PDF417, MicroPDF417, MaxiCode, Aztec, DataMatrix, GS1 Databar Composite
Connectivity
Connectivity
USB version 2.0 (Full Speed) (Type C), Wireless LAN IEEE 802.11g/n, 802.11d, 802.11i (Wireless Direct Mode), Wireless LAN IEEE 802.11a/n, 802.11i WPS2.0 (Infrastructure Mode/5GHz), IEEE 802.11b/g/n, 802.11i, WPS2.0 (Infrastructure Mode/2.4GHz), Wireless Ad hoc mode (No), NFC
Display & Memory
Memory Capacity
RAM: 256MB, Flash: 64MB
Operation
Power Source
PA-BT-002 Rechargeable Li-ion Battery, PA-AD-600A AC Power adapter, PA-CD-600CG Car adapter (Cigarette socket type), PA-CD-600WR Car adapter (Permanent wired type) (Purchase separately).
Temperature Operating
Rechargeable Li-ion battery, Car Adapter: -10°C to 50°C,
AC Power adapter: -10°C to 40°C
Supported Commands
Supported Commands
Raster graphic, ESC/P Legacy (ESC/P_P), ESC/P Brother (ESC/P_B), P-touch Template, ZPL II emulation
Network
Wireless Network Security
Authentic method (encryption scheme)
Wireless Infrastructure mode
Open system (None/WEP64/WEP128),
Common key authentication (WEP),
WPA/WPA2-PSK/WPA3-SAE (TKIP+AES),
WPA3-SAE (AES),
TLS 1.0/1.1/1.2/1.3
Authentic method (encryption scheme)
Wireless Direct mode
WPA2-PSK (AES)
WPS (Wi-Fi Protected Setup)
802.11i"
