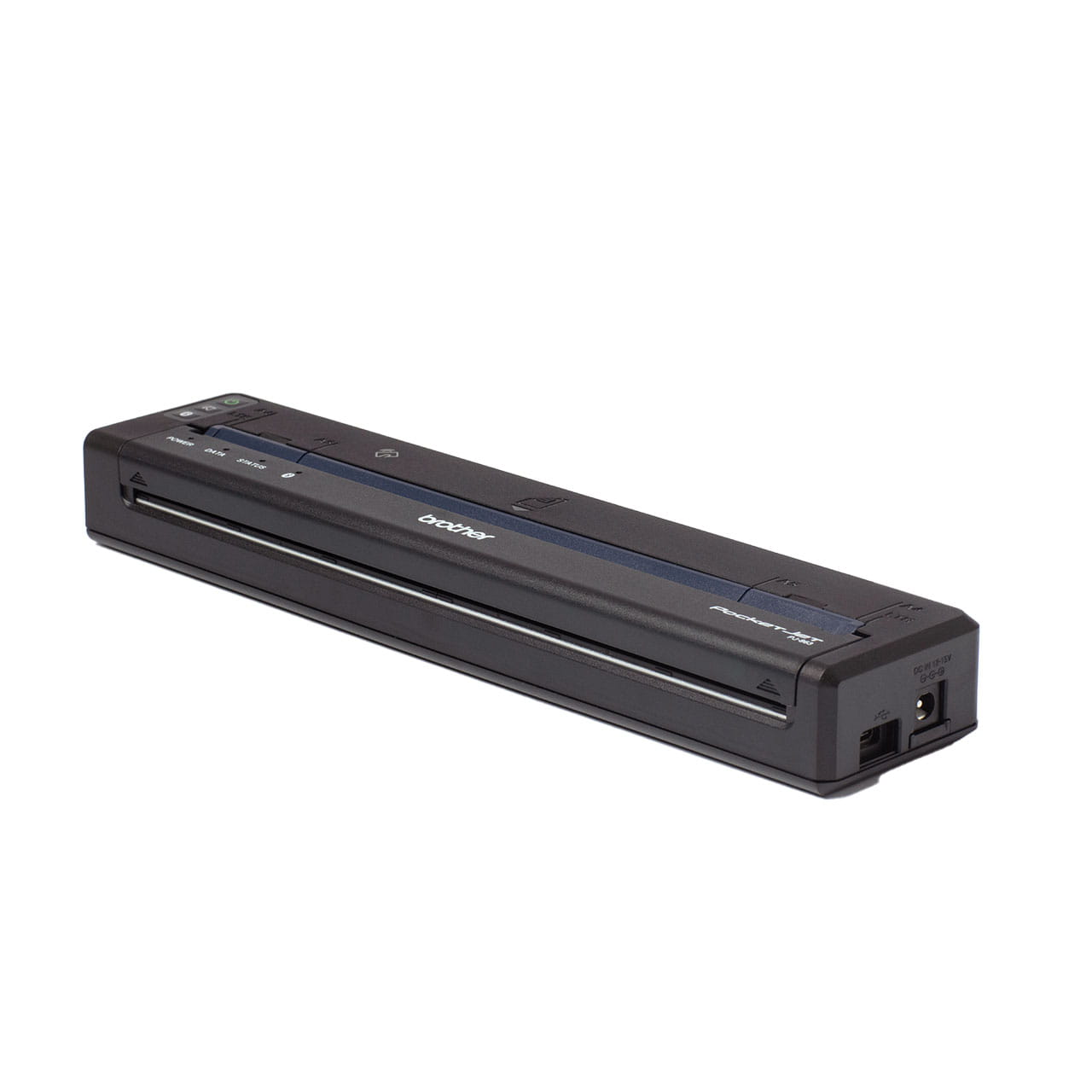

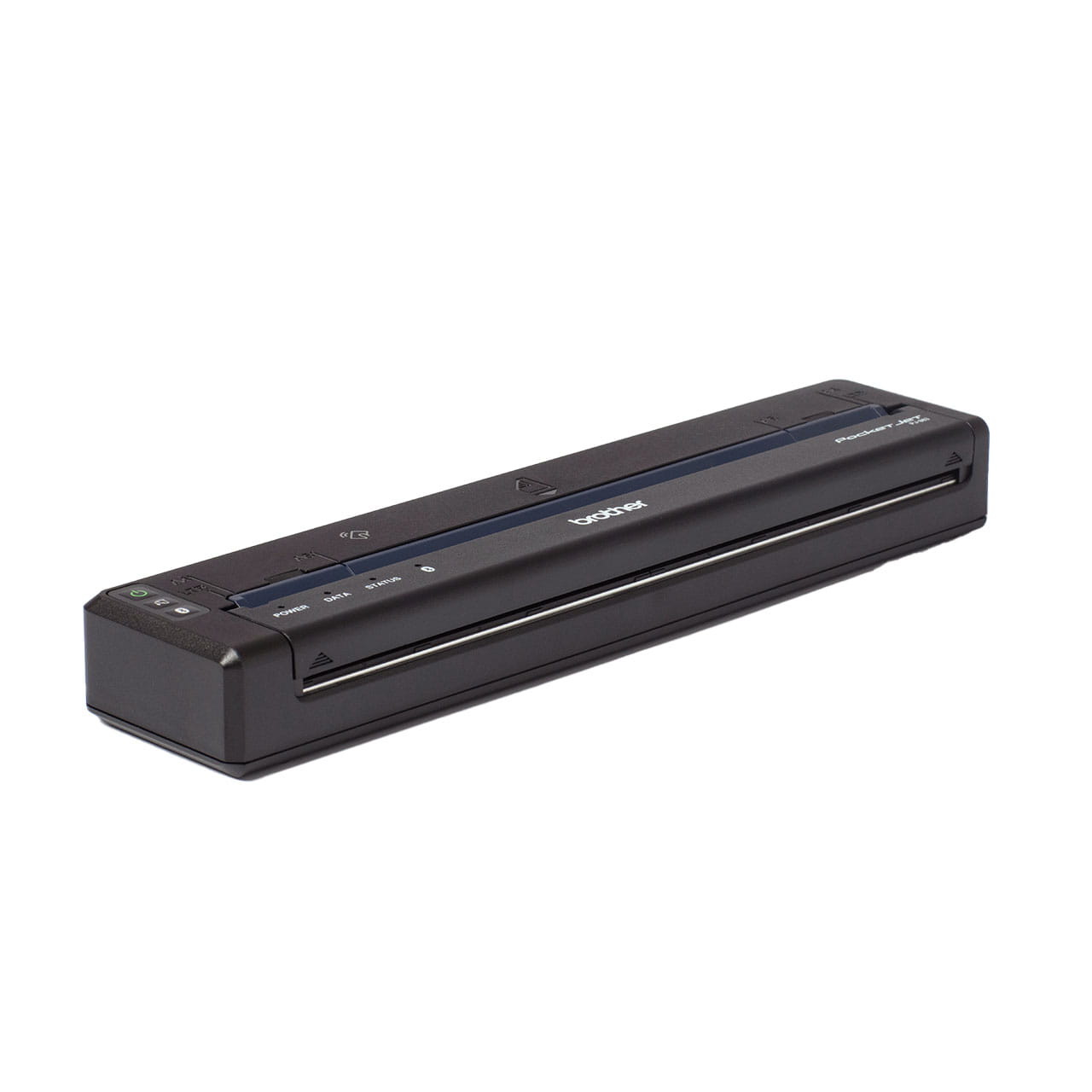

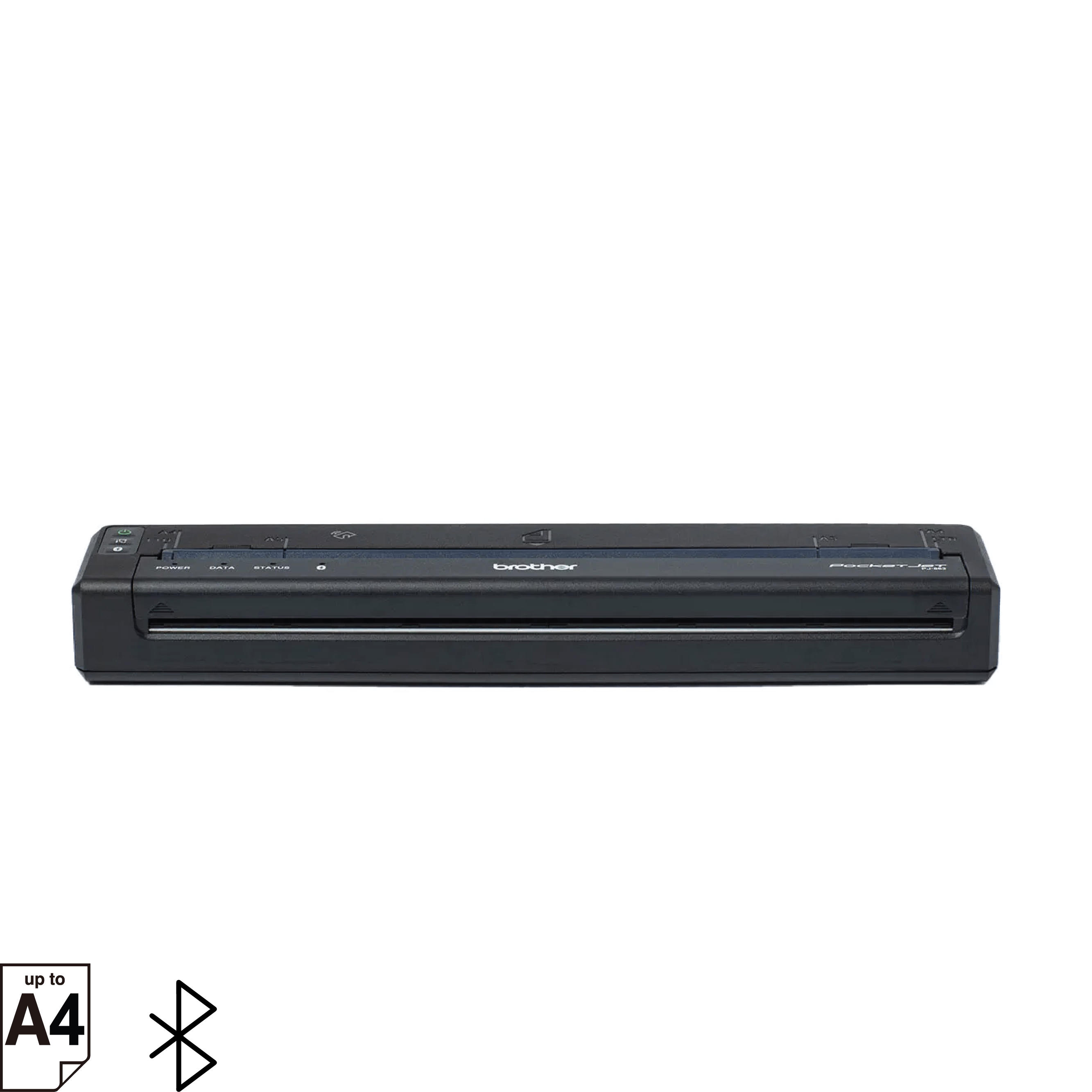

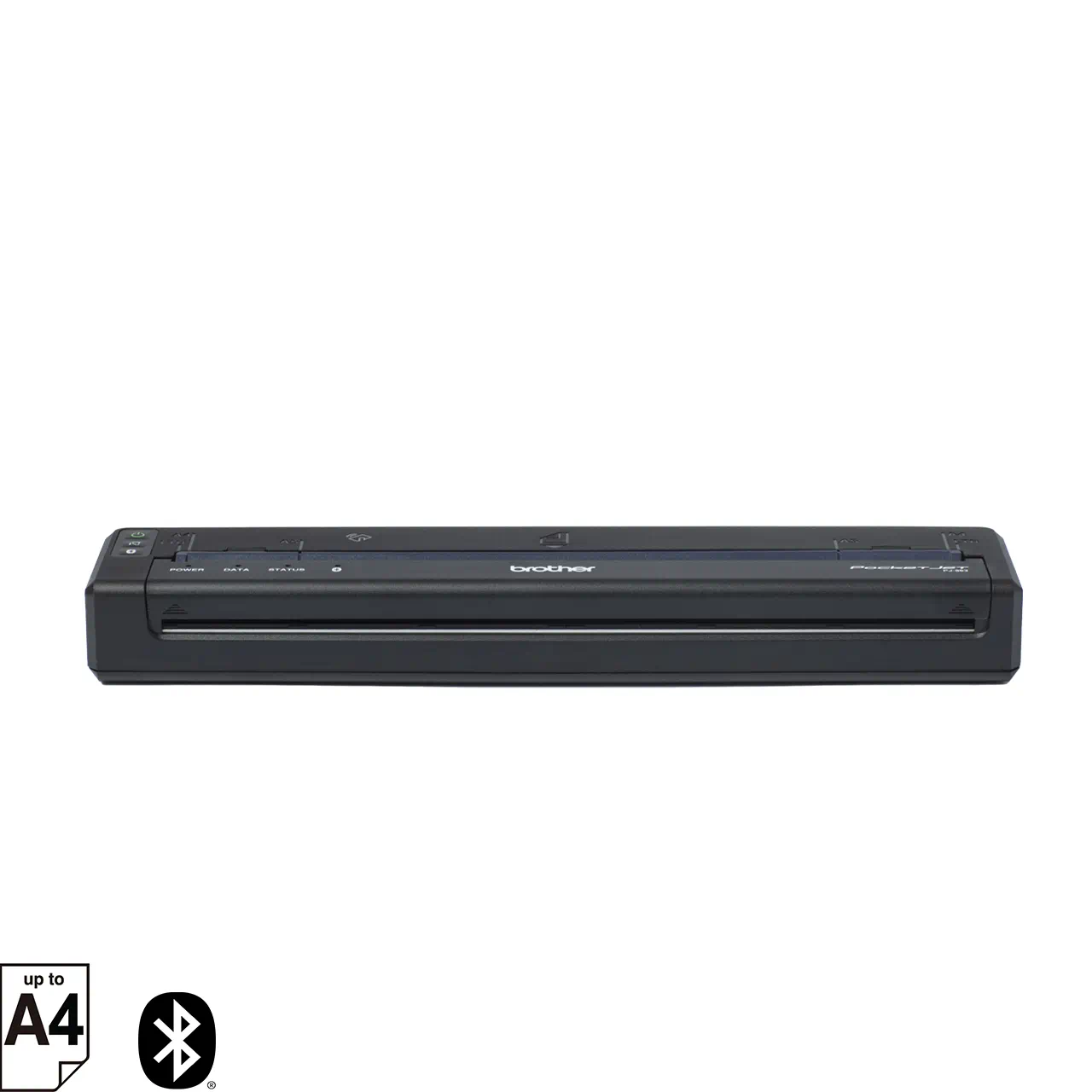

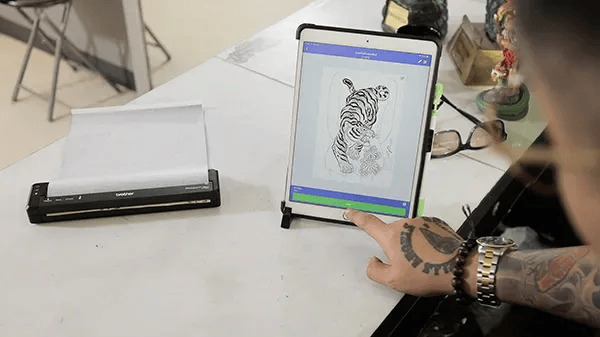

A4 Mobile Thermal Printer with MFi Bluetooth Connectivity
MYR 2,299

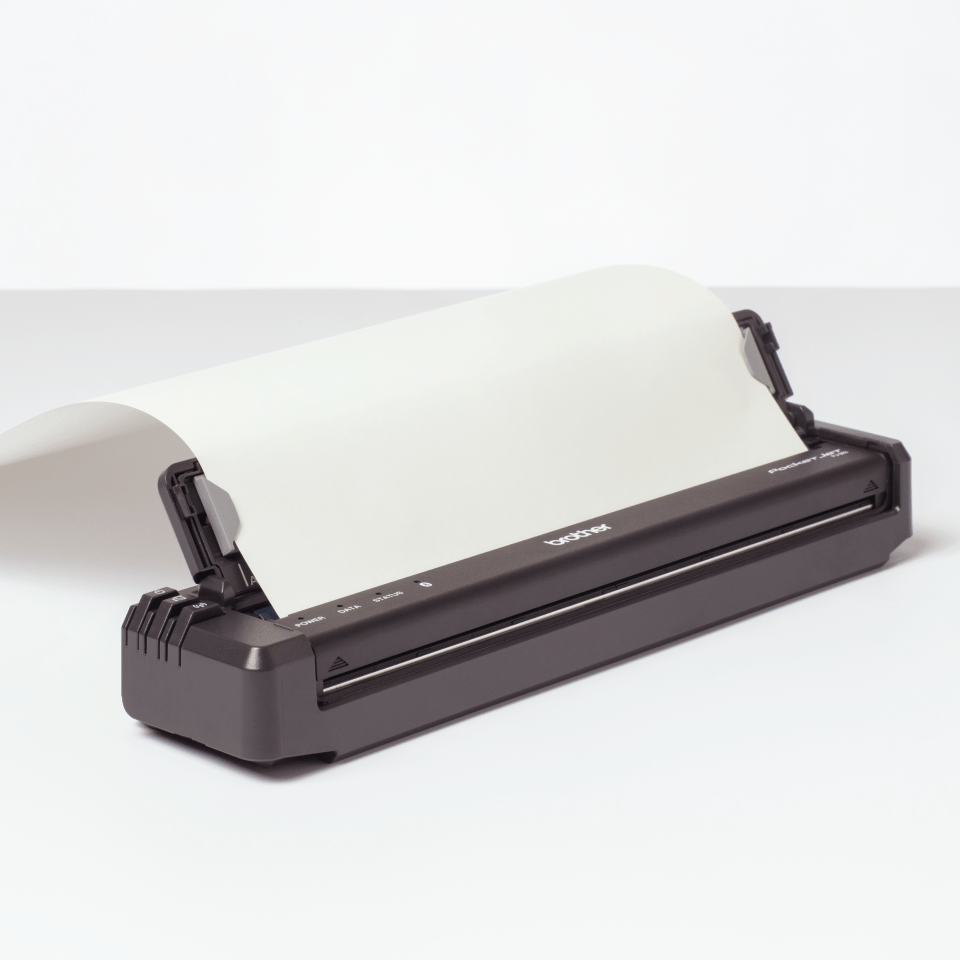

- Prints A4 paper on-the-go
- USB, Bluetooth and MFI, WiFi connection
- Tear Bar
- Lightweight at 480g and Compact size at 255mm × 55mm × 30mm
- Fast print speed of 13.5ppm, 3ips
- Cost saving with direct thermal printing technology without ink or toners required.
Information
Overview
Specifications
Basic Specs
Functions
Printer Type
Portable printer
Product Dimensions (Width X Depth X Height)
255 mm × 55 mm × 30 mm
Weight
480 g
Print Speed
Up to 13.5ppm, 3ips fast print speed*
Paper Type
Paper and Synthetic
Full-page: Cut Sheet, Continuous Roll, Perforated Roll, Fan-Folded
Labels: Cut Sheet, Fan-Folded
Paper Size
A4, A5, Letter, Legal, and Continuous length
Maximum Paper Capacity
Cut paper and Roll paper: 215.9mm, 8.5 inches (Letter, Legal)
Resolution
300×300dpi
Printing Width
Up to 203.2mm
Barcode
Linear: Code39, Code93, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR(NW-7), CODE128, GS1-128(UCC/EAN-128), POSTNET, GS1 DataBar(RSS), MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5
2D: QR Code, Micro QR Code, PDF417, MicroPDF417, MaxiCode, Aztec, DataMatrix, GS1 Databar Composite
Connectivity
Connectivity
USB version 2.0 (Full Speed) (Type C), NFC
Display & Memory
Memory Capacity
RAM: 256MB, Flash: 64MB
Operation
Power Source
PA-BT-002 Rechargeable Li-ion Battery, PA-AD-600A AC Power adapter, PA-CD-600CG Car adapter (Cigarette socket type), PA-CD-600WR Car adapter (Permanent wired type) (Purchase separately).
Temperature Operating
Rechargeable Li-ion battery, Car Adapter: -10°C to 50°C,
AC Power adapter: -10°C to 40°C
Supported Commands
Supported Commands
Raster graphic, ESC/P Legacy (ESC/P_P), ESC/P Brother (ESC/P_B), P-touch Template, ZPL II emulation
