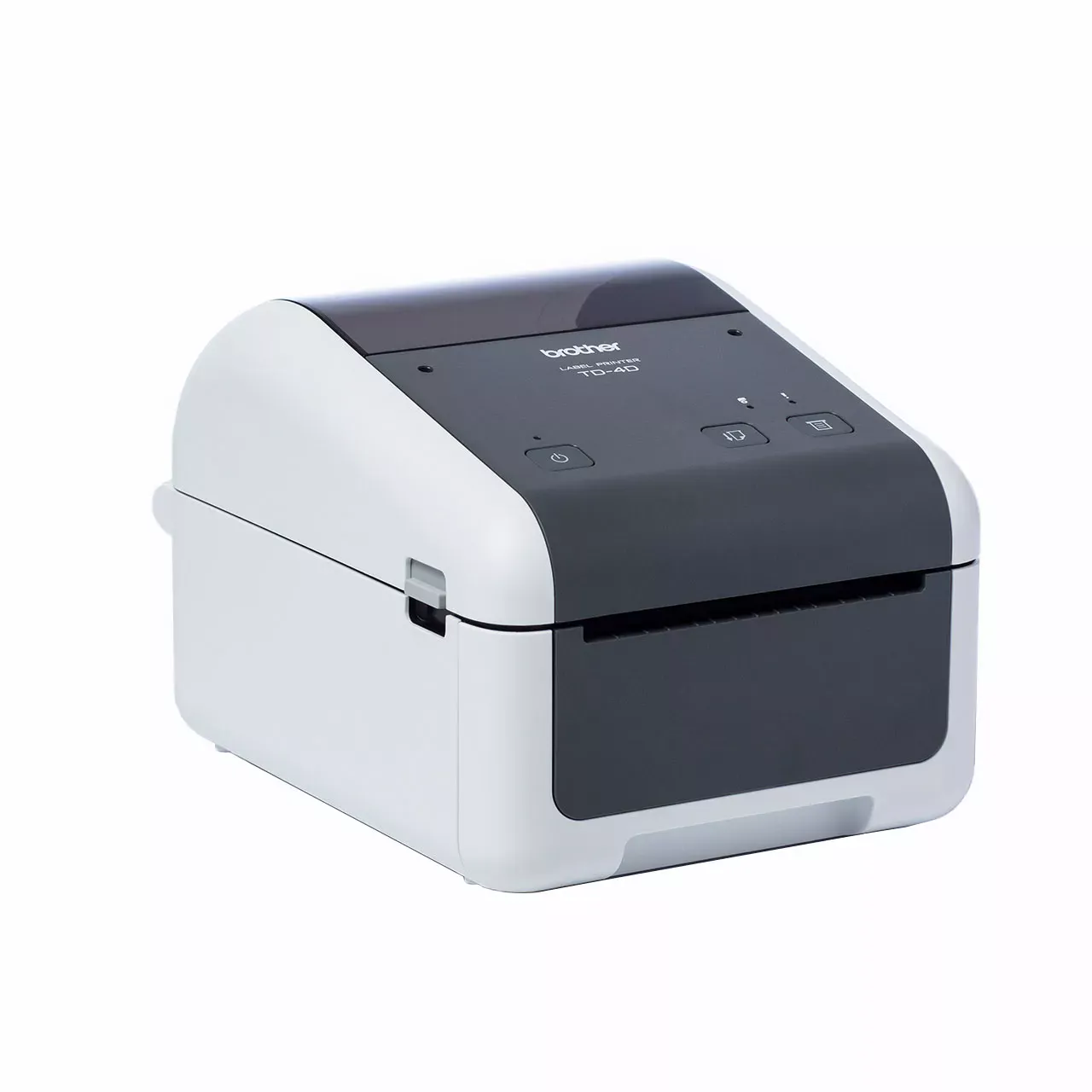

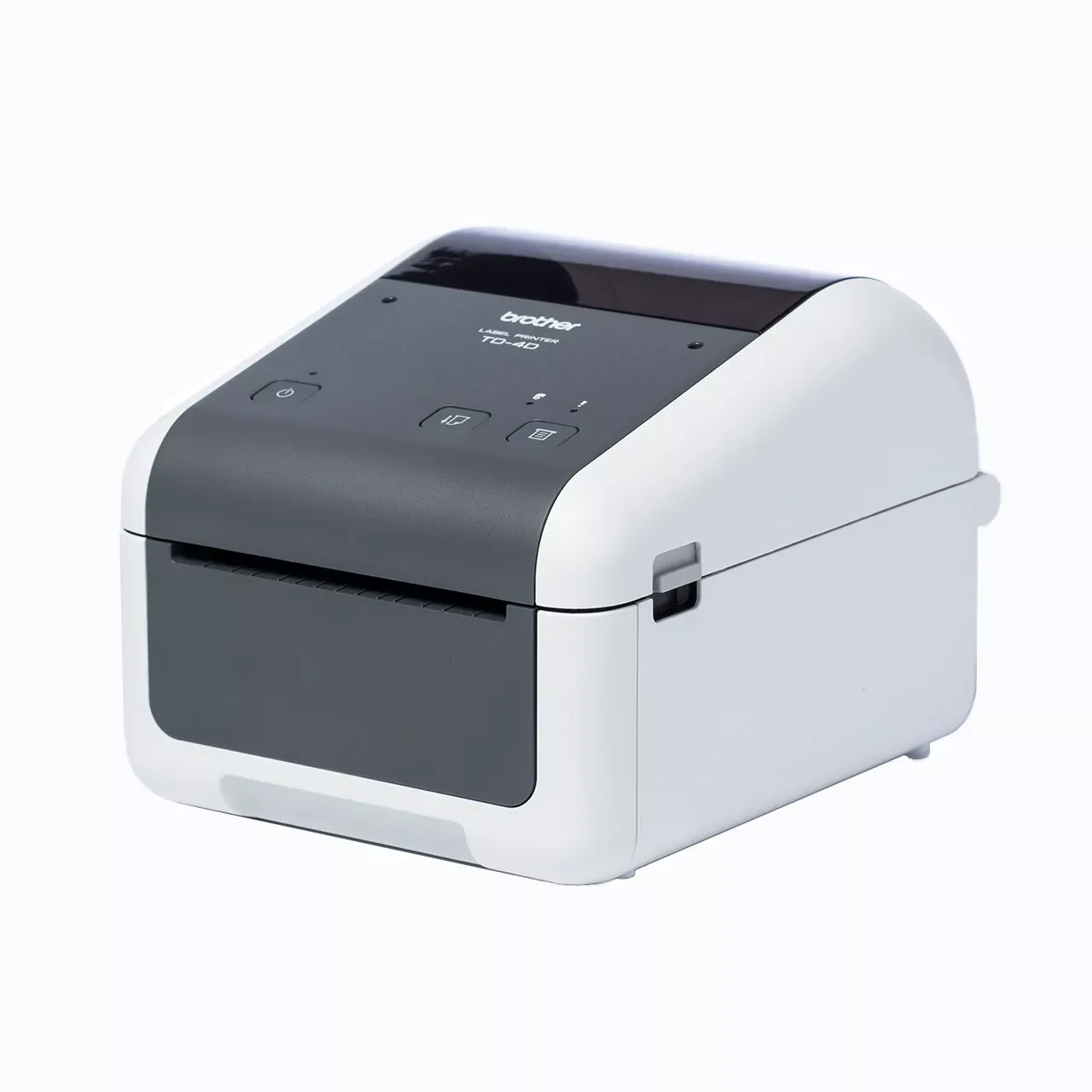

Professional Label Printer for Healthcare, Logistics, Retail and Food Industries
- Print up to 118mm RD rolls width
- USB, Serial and Wired LAN connection
- Tear Bar
- Automatic media calibration
- Self-replaceable print head and roller
- 203dpi print resolution
Information
Overview

Healthcare industry
With strict regulations on tracking patient specimens and other items within the Healthcare industry, clear and high-quality labels can be printed from TD-4420DN label printers to maintain patients’ safety and traceability.

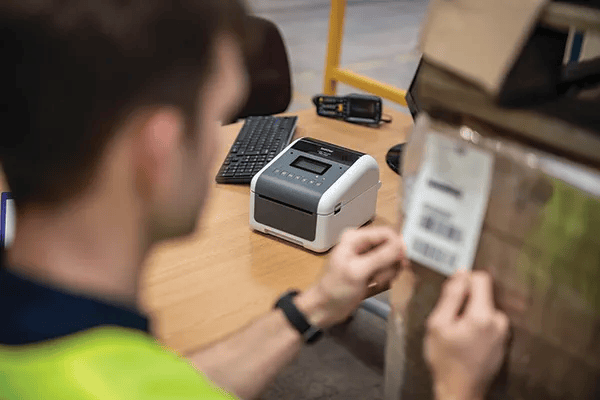

Logistics and Warehousing industry
Efficient warehousing operations and worker productivity are critical to the success of any organisation.
Several common sizes shipping labels, custom-size labels can be created and there are many uses of TD-4420DN label printers in the Logistics and Warehousing industries.

Retail industry
Easy-to-read labels are essential for consumers to make informed decisions before purchasing.
High-quality labels can be printed in high resolution from TD-4420DN label printer which will make each label looks professional with sharp text, logos, or barcodes which allows faultless scanning at the retail checkout.

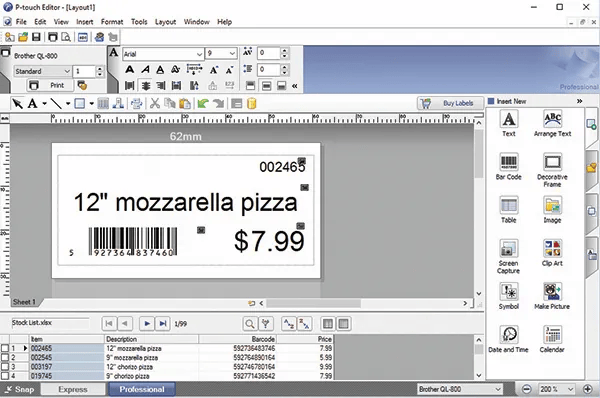

P-touch Editor software
Brother’s P-touch Editor is a complimentary label design software with a wide variety of specially designed templates, symbols, clipart, text design, and barcodes.
Import graphic files to create a logo and print labels on demand from an imported database via a USB or Wired LAN connection with a PC system.
P-touch Editor is a comprehensive and versatile label design software that can provide a truly connected solution to accommodate any label application.

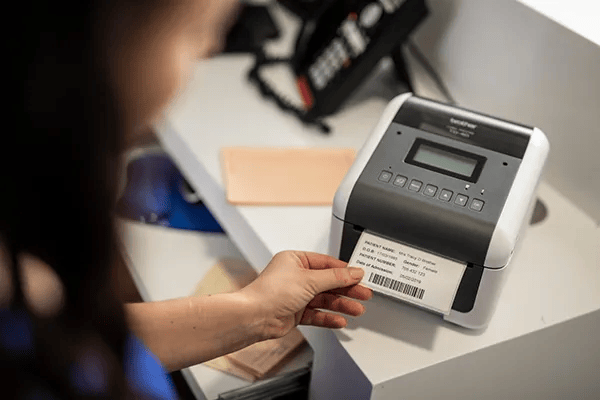

Seamless integration
Developed for advanced users, system integrators can leverage on Brother’s Software Development Kit (b-PAC SDK) for Windows® Operating System and print command languages such as ZPL II emulation, Raster, and CPCL emulation for seamless integration into any legacy system for label printing.
For more information, please visit:
https://www.brother.co.jp/eng/dev/bpac/index.aspx

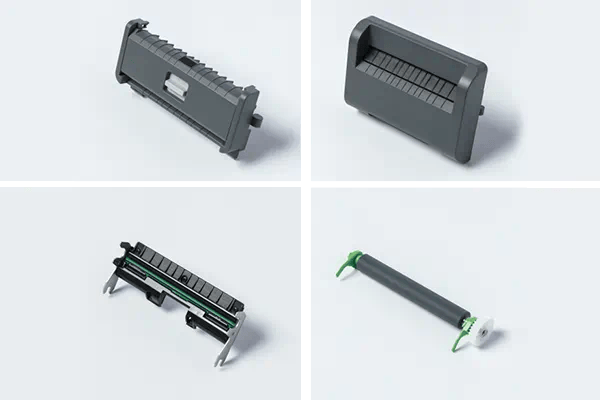

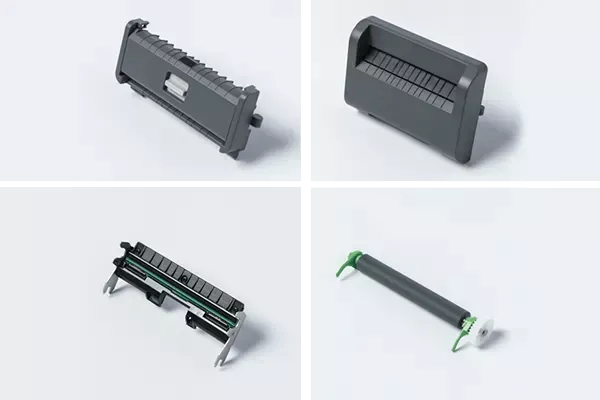

A variety of
optional accessories
Comes with a wide range of accessories* to customise solutions, Brother can help end-users to be equipped with their devices to cope with any specific requirements.
* Separate purchase required
Specifications
Basic Specs
Display Type
SVGA/High Color or more
Media Type
Wristbands, Continuous, Die Cut, Fan Fold, Perforated ,Tag
Available Tape Widths
19 ~ 118 mm
Product Dimensions (Width X Depth X Height)
180 mm × 224 mm × 155 mm
Weight
2.08 kg
Print Speed
MAX 203.2mm/sec
Resolution
203 dpi
Barcode
Yes
Connectivity
Connectivity
USB
Media
Maximum Roll Width
19 ~ 118 mm
Printing Width
Up to 104.1 mm
Functions
Cutter
Die-cut labels / Tear off
Mirror Printing
Yes
Preview
No
Memory
File Storage
max 99 templates
Memory Buffer Size
64MB
Power
Power Source
AC adapter ( 100 - 240 V 50/60Hz)
Auto Power-Off
Yes
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL emulation, CPCL emulation
