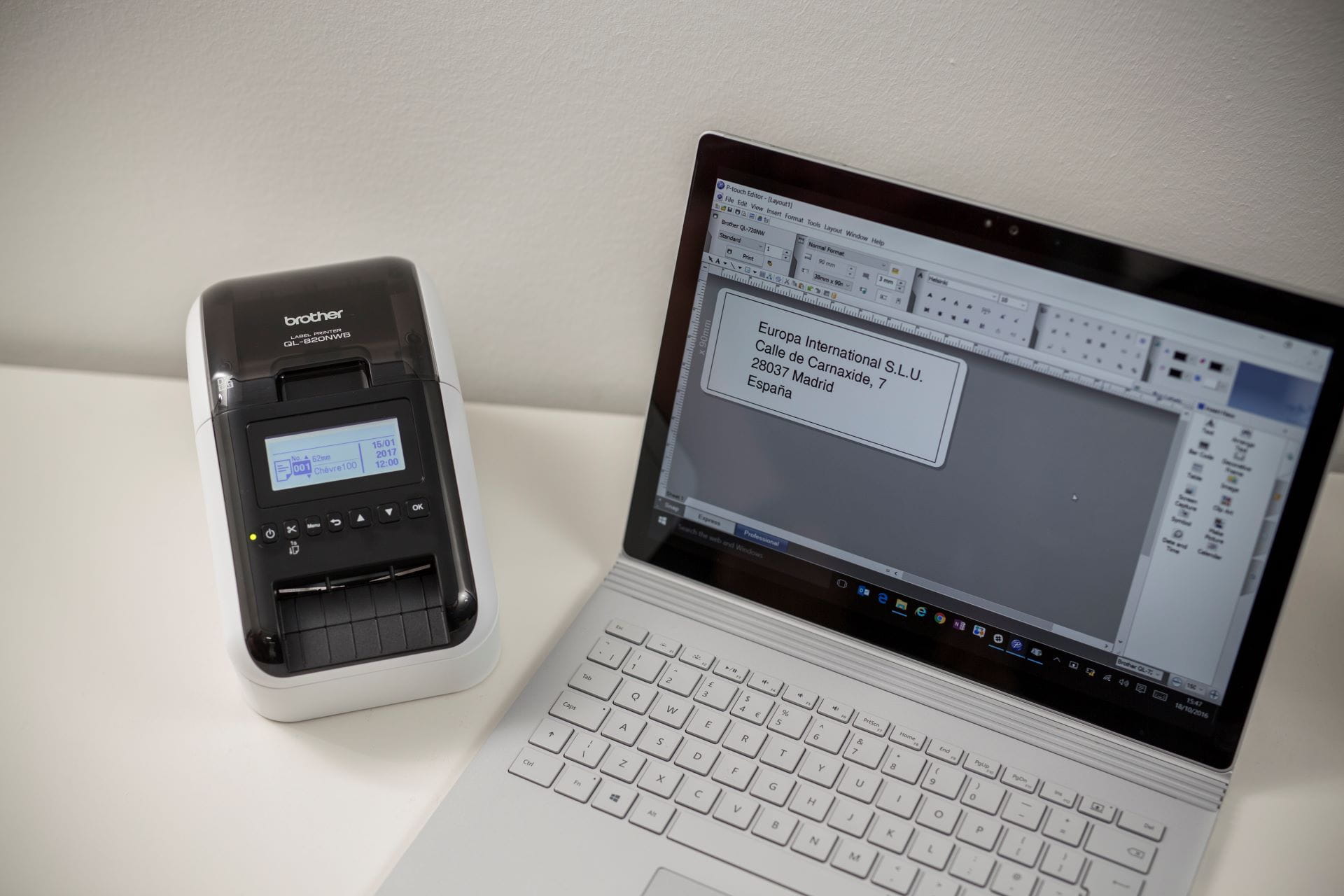

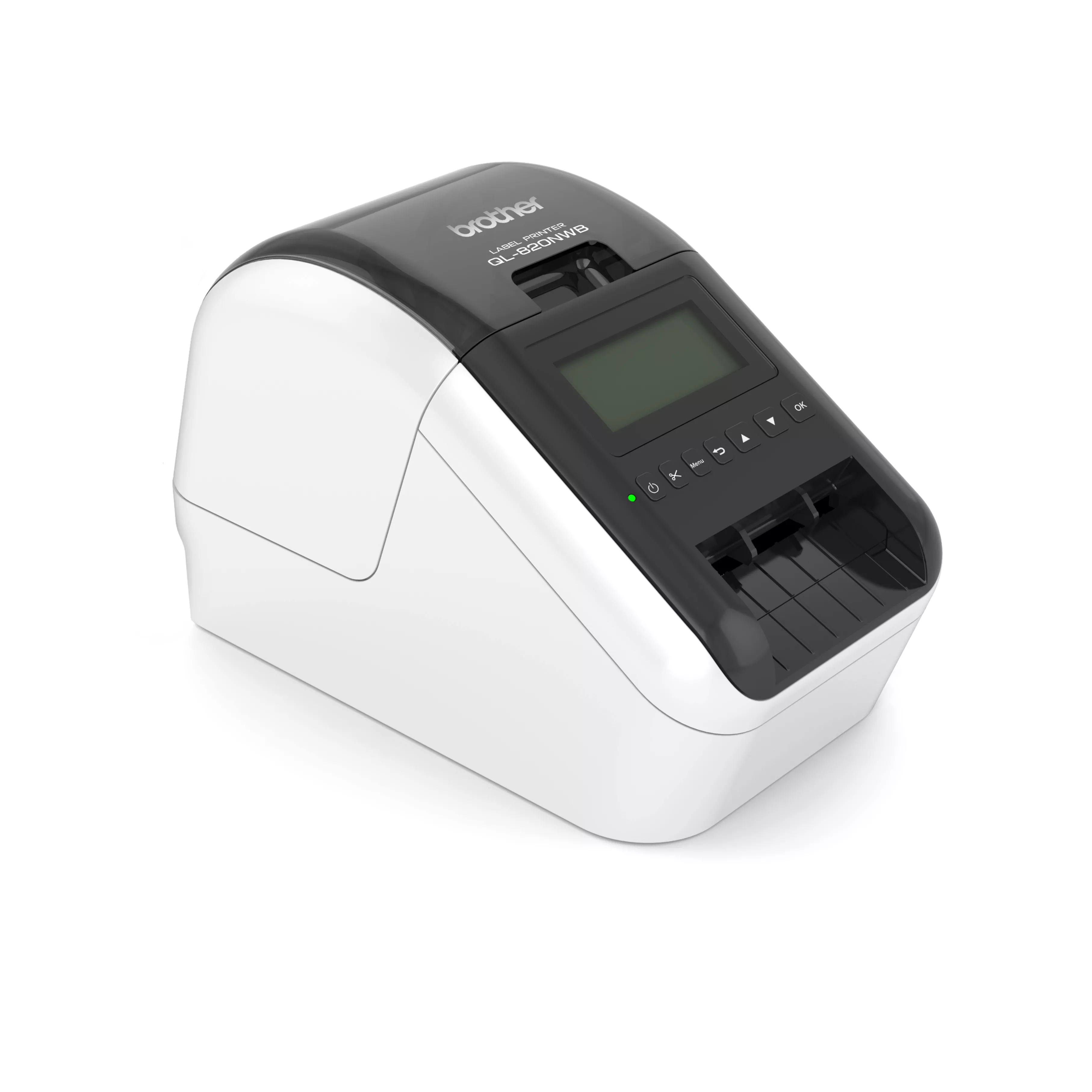

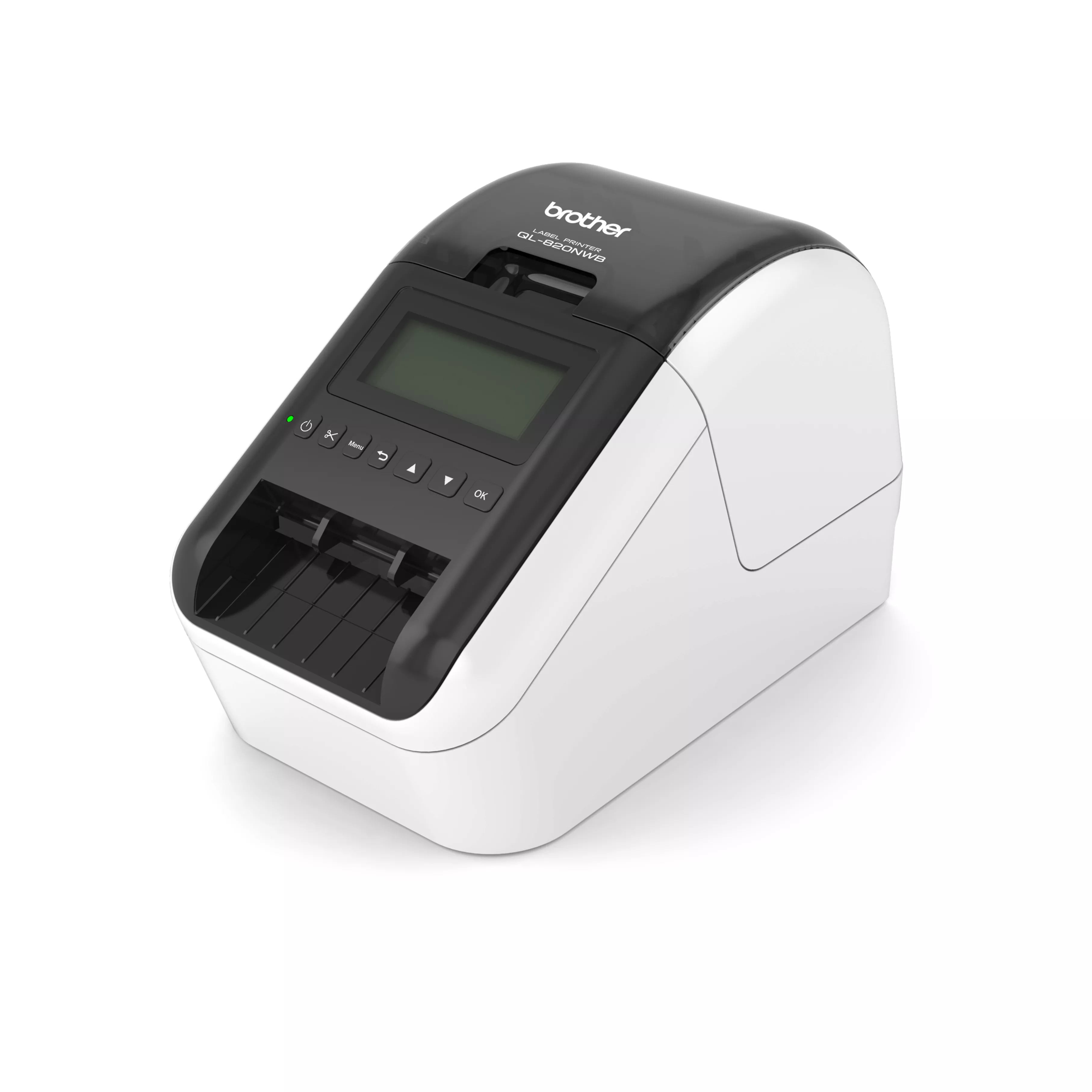

Professional Label Printer with Wired, Wireless and Bluetooth Connectivity
MYR 1,198
- Print up to 62mm DK rolls width
- USB, USB host, Bluetooth, Wired LAN and WiFi connection
- Auto cut function
- Standalone print without PC required
- Fast print speed of up to 176mm per second
- Stand-alone Time-stamping function
Information
Overview
Specifications
Basic Specs
Display Type
320x120 dot graphic LCD with backlight
Media Type
DK roll
Available Tape Widths
12 - 62mm
Product Dimensions (Width X Depth X Height)
125.3 mm × 234 mm × 145 mm
Weight
1.16 kg
Print Speed
Max 176mm/sec
Resolution
Standard: 300 dpi × 300 dpi
High resolution mode: 300 dpi × 600 dpi
Barcode

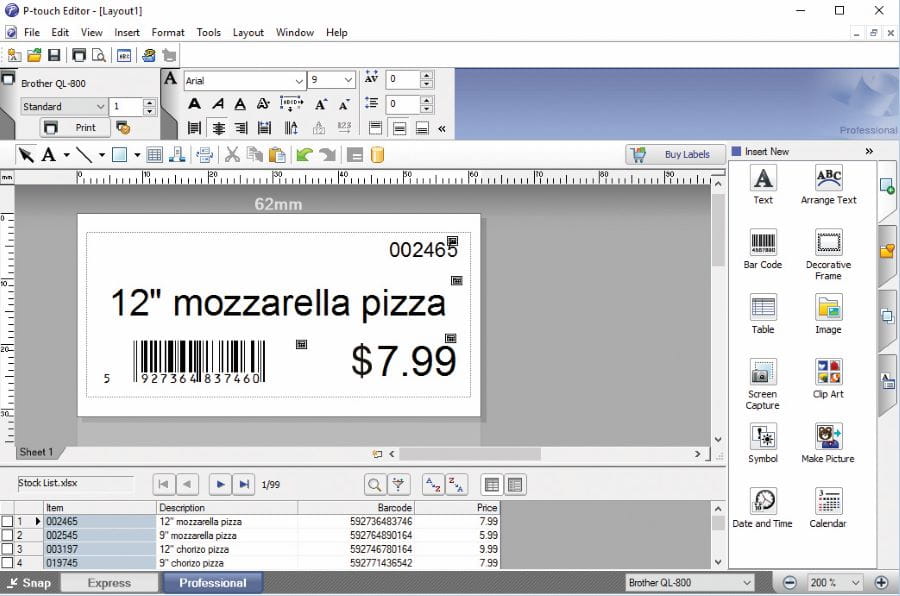

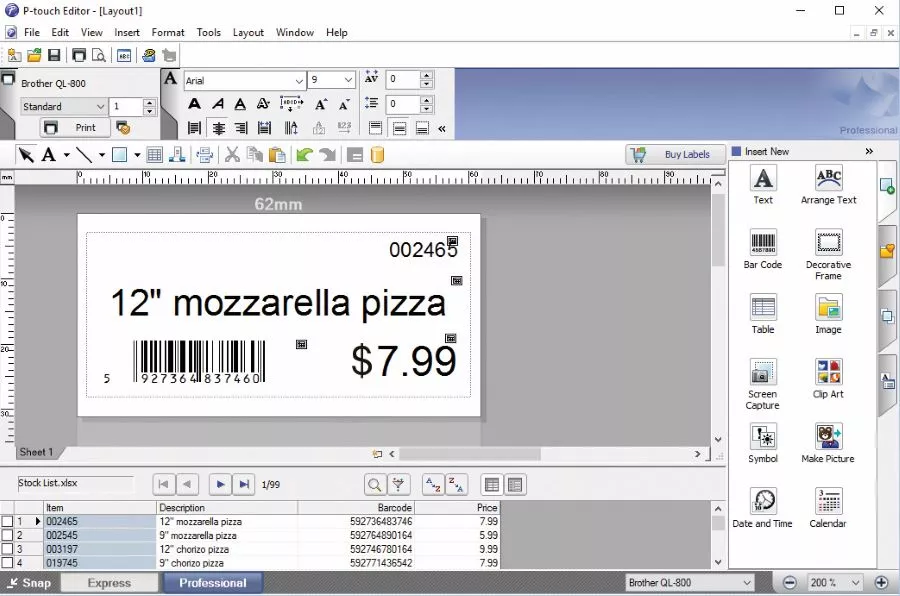

21 barcode protocols on P-touch Editor
Numbering
Yes
Connectivity
Connectivity

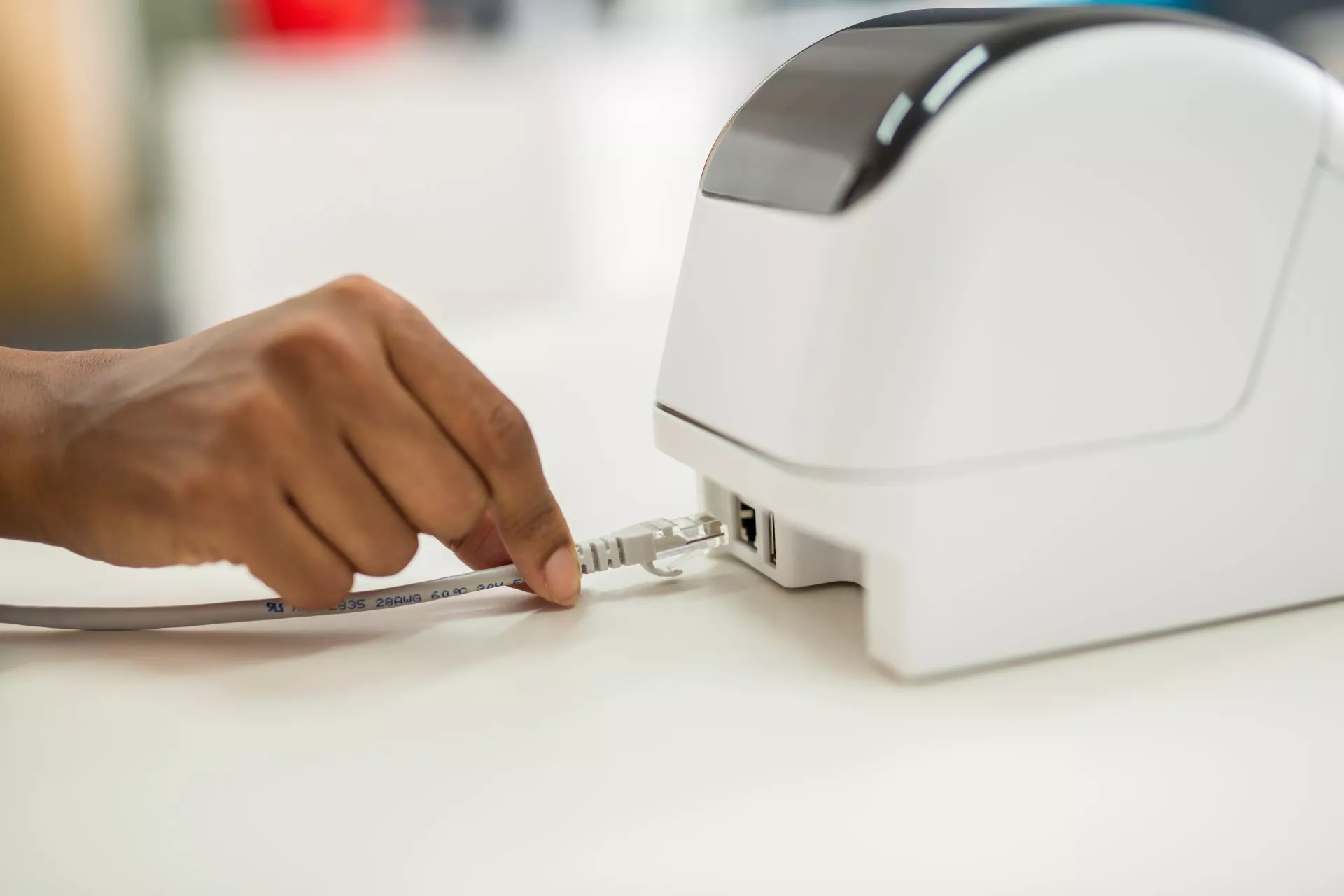

USB & Wired Ethernet, Wireless LAN, Bluetooth
Media
Maximum Roll Width
up to 62mm
Printing Width
Up to 58 mm
Functions
Cutter
Yes (full auto cut / guillotine type)
Multi Block Printing
PC
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
6MB, 255 templates
Power
Power Source
240V AC external adapter
Auto Power-Off
Yes
Supported Commands
Supported Commands

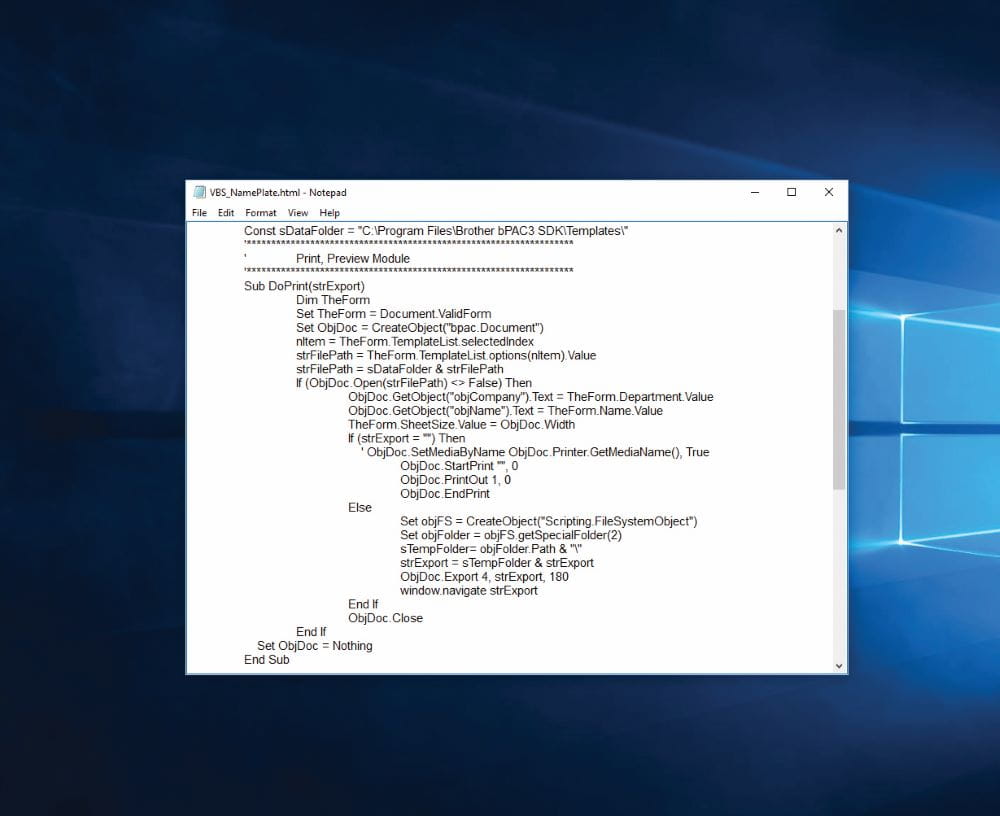

Raster, ESC/P, P-touch Template, (ZPL/ZPLⅡ(upon request))
