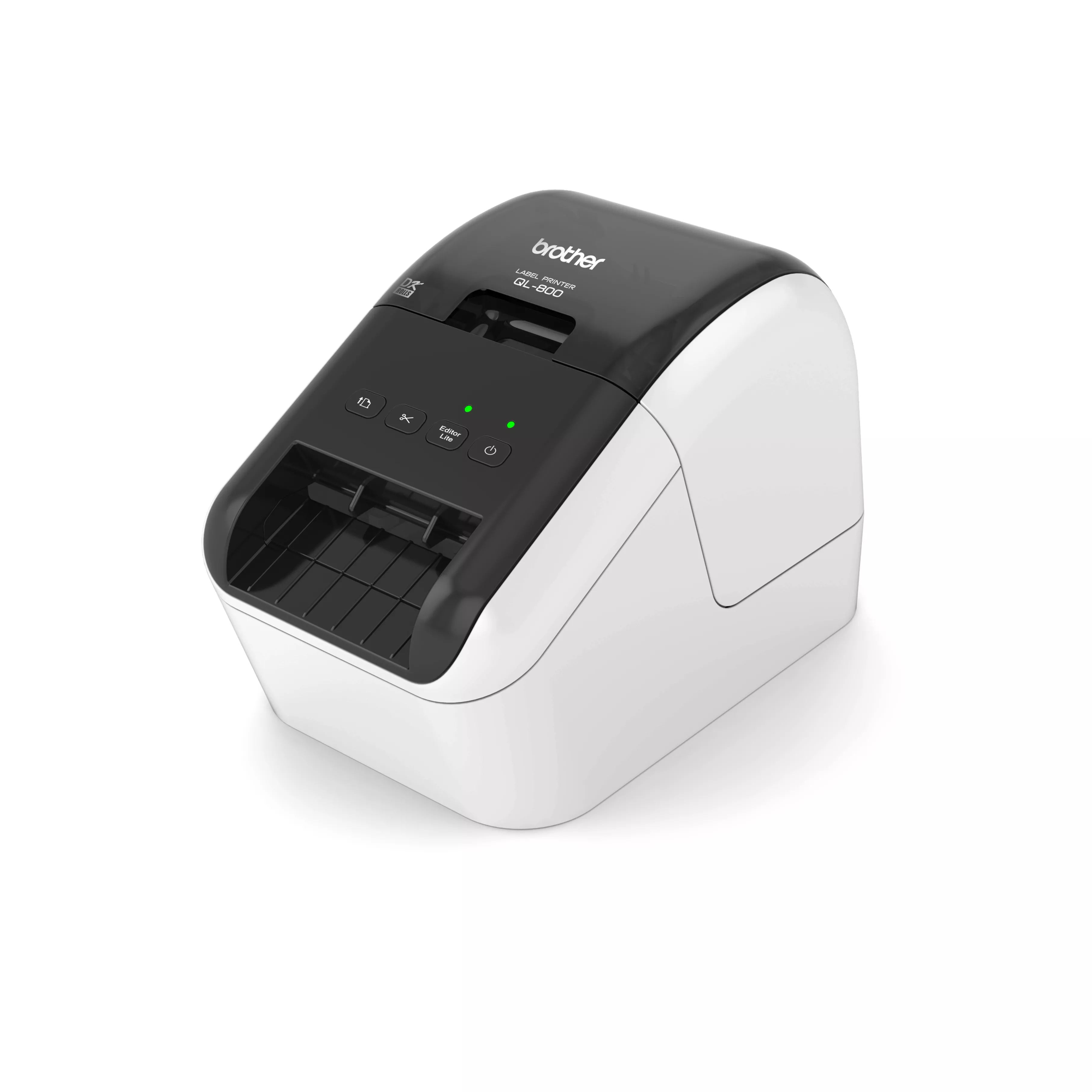

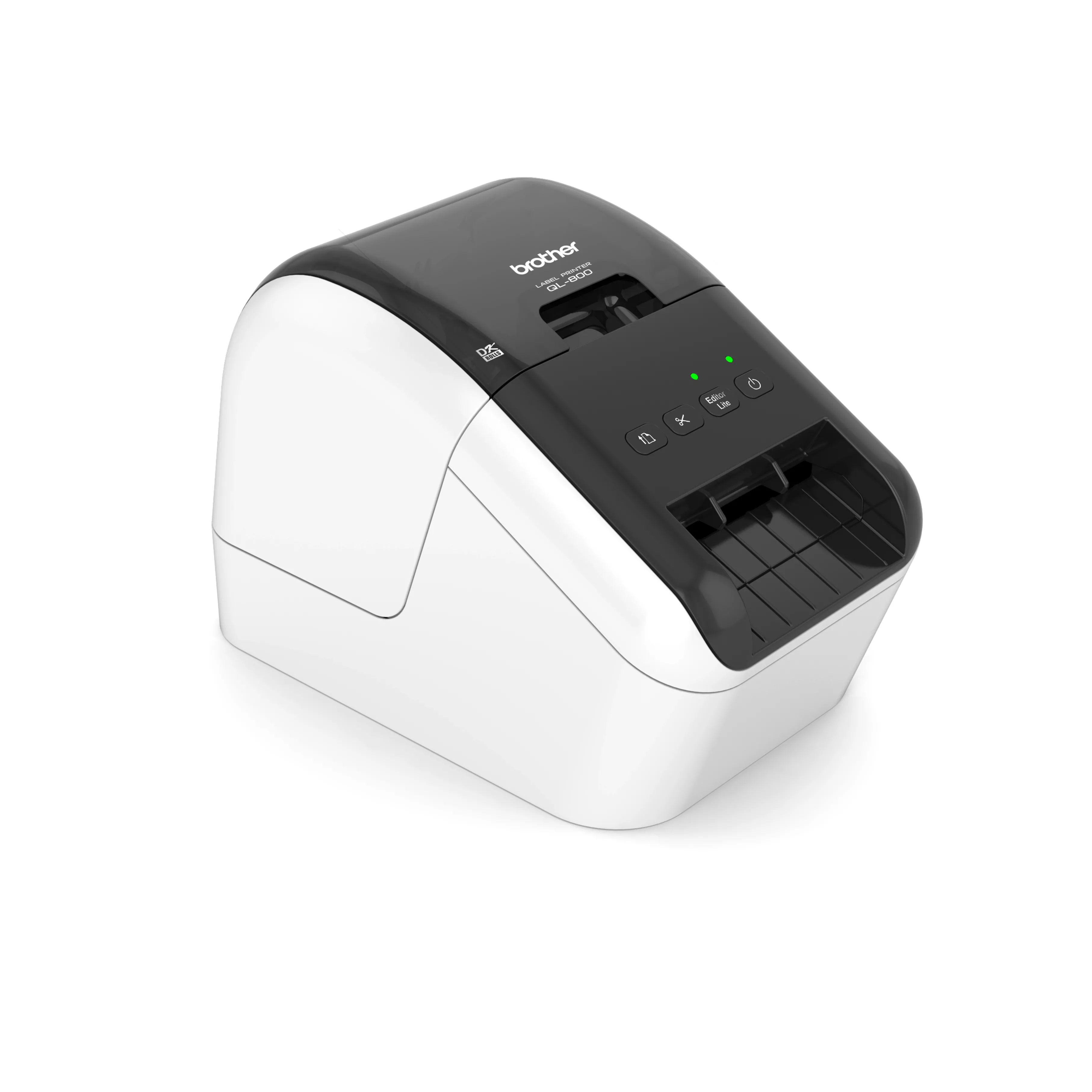

Professional Label Printer
- Print up to 62mm DK rolls width
- USB connection
- Auto cut function
- Prints Red/Black on White label
- Fast print speed of up to 148mm per second
- Comes with Label collection templates
Information
Overview
Black and red printing without ink
Brother DK label rolls are available in a range of traditional die-cut (pre-sized) labels, or continuous, that allows the built-in cutter to cut your label to the precise length (up to one metre). Plus, draw attention to important information by including red* on your labels too - ideal for highlighting use-by dates, allergens and other critical information.
*DK-22251 roll required

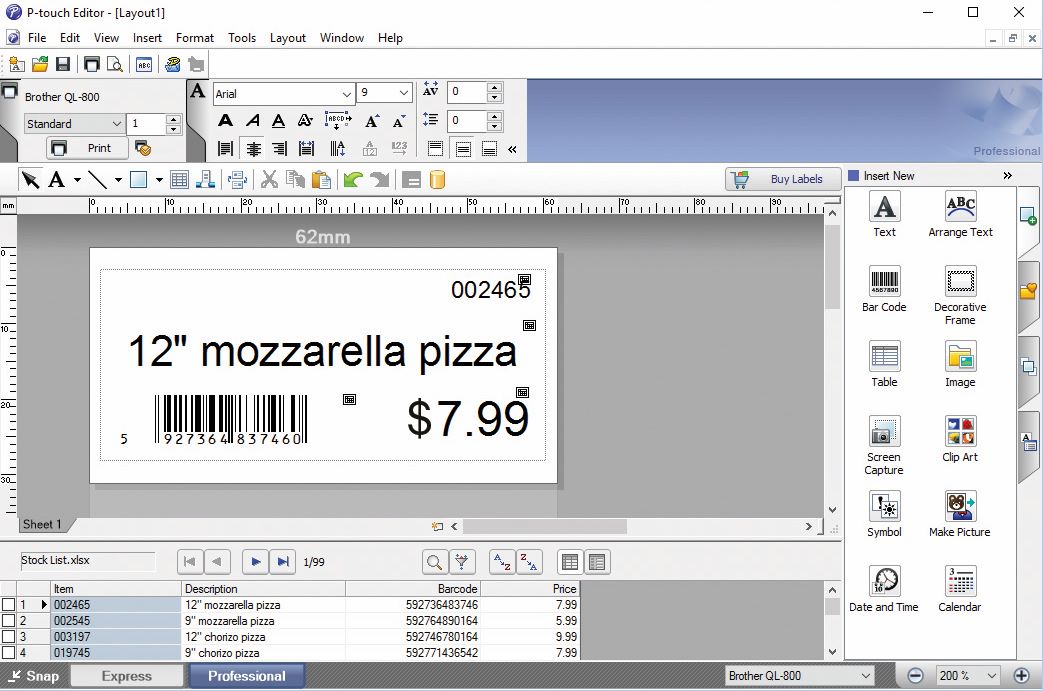

Click and print from Microsoft Word/Excel/Outlook
The P-touch Editor add-in for Microsoft Office (Windows only) lets you print labels with the information you use every day, with just one click. Highlight your text, click the add-in, and the label is printed. Alternatively, text saved in an Excel or .csv file can be imported into P-touch Editor and merged with your label layout to print many labels with the same format (design). Ideal for printing address, product and pricing labels.
Large range of labels for any application
The QL series label printers use Brother DK rolls - that easily slot-in for fast label changes. Several types are available:
- Pre-sized die-cut adhesive labels in paper and plastic film material.
- Continuous adhesive labels in paper and plastic film material that can be cut to the length you need (up to 1 metre).
- Non-adhesive card ideal for receipts and name badges.
- Removable adhesive for repositioning labels.

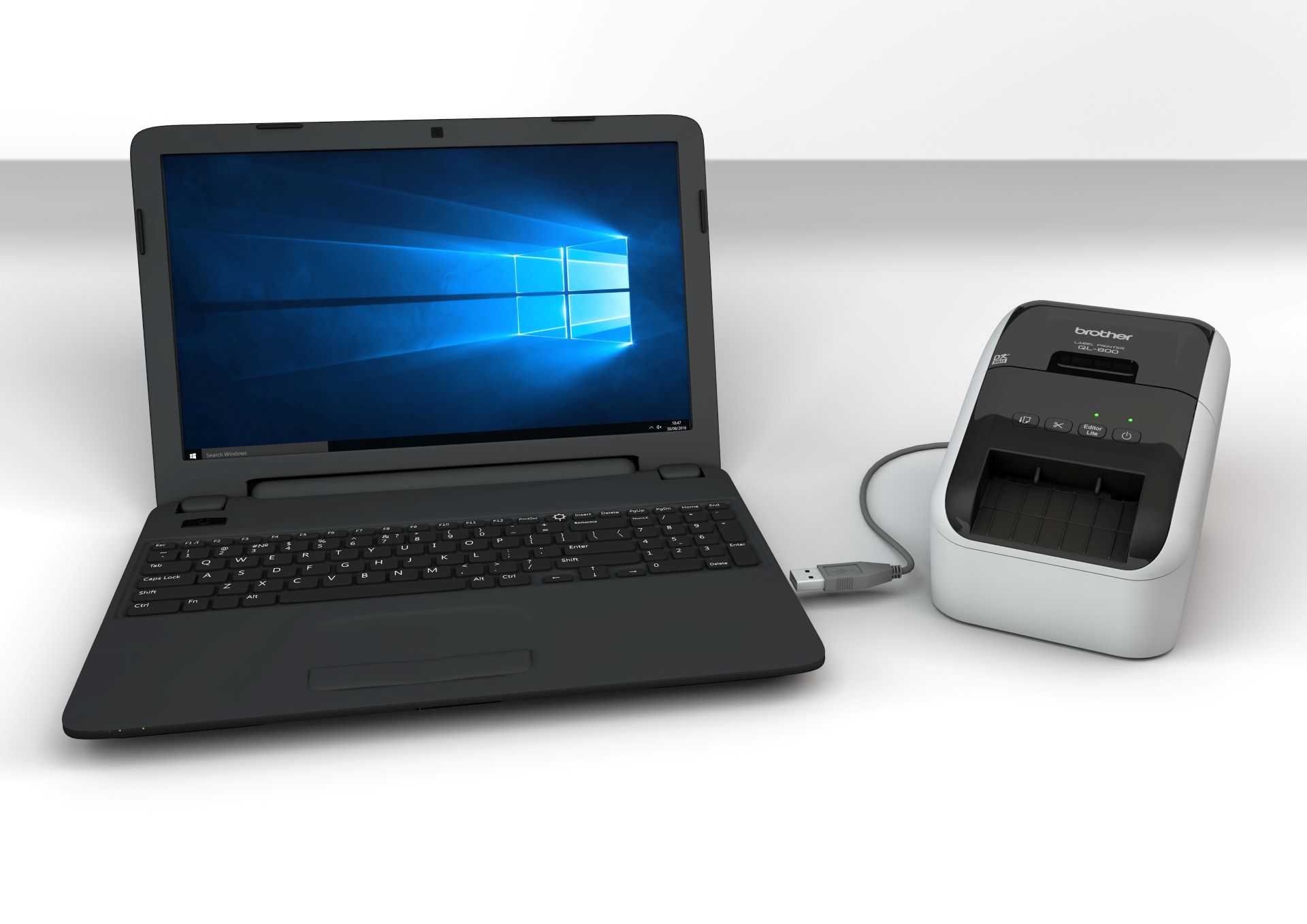

The easy-to-use label printer
Developed for use in busy workplaces, this advanced label printer is easy to set-up and use. Using the same technology as USB pen drives, simply connect to your PC or Mac, and run the built-in software without the need to install printer drivers. For more labelling options, download the free P-touch Editor label design software and printer drivers to design and print fully customised labels containing text, frames, barcodes and images.
Specifications
Basic Specs
Media Type
DK roll
Available Tape Widths
up to 62mm
Product Dimensions (Width X Depth X Height)
125.3 mm × 213 mm × 142 mm
Weight
1.15 kg
Print Speed
148 mm/sec, 93 labels/min
2 color (black and red on white DK roll) Print Max: 24 mm/sec
Actual print speed varies depending on the conditions.
Resolution
Standard: 300 dpi × 300 dpi
High resolution mode: 300 dpi × 600 dpi
Barcode
21 barcode protocols on P-touch Editor
Numbering
Yes
Connectivity
Connectivity
USB version 2.0 (Full Speed)
Media
Maximum Tape Width
DK-1201/11201(100 Labels)
DK-2251/22251(5M)
Maximum Roll Width
up to 62mm
Printing Width
Up to 58 mm
Functions
Cutter
Durable automatic cutter
Copy Printing
Yes
Mirror Printing
Yes
Preview
No
Memory
File Storage
7.8MB
99 templates
Power
Power Source
240V AC 60Hz 1.7A
Auto Power-Off
Off/10/20/30/40/50/60 Minutes
Supported Commands
Supported Commands
Raster
